Monitor Scantool Data

1. Specification:
   TEMPERATURE RESISTANCE REFERENCE CHART



   Temperature °C (°F)	-40	-30	-20	0	20	80	100	110	120
   Resistance (kΩ)	45.3	25.6	15.1	5.8	2.5	0.33	0.19	0.16	0.13
   Voltage (V)	4.48	4.34	4.12	3.46	2.57	0.64	0.39	0.34	0.27

   (Pull up resistance is Approx. 2.2 kΩ and above specification's error range is 2~3%.)

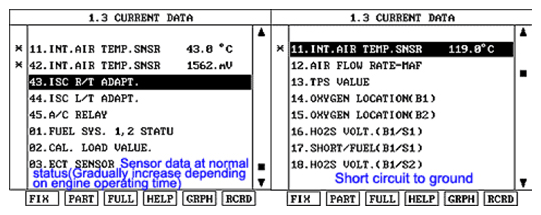

   Fig 1: Scantool Screen Display - IAT Sensor Parameter



YES

1. Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector.
2. Fault was repaired and ECM memory was not cleared.
3. If the problem works out, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

1. Go to "Inspection & Repair" procedure.
