Using voltmeter

Disconnect the throttle position sensor connector.
Check the continuity between terminal 2 and sensor ground.

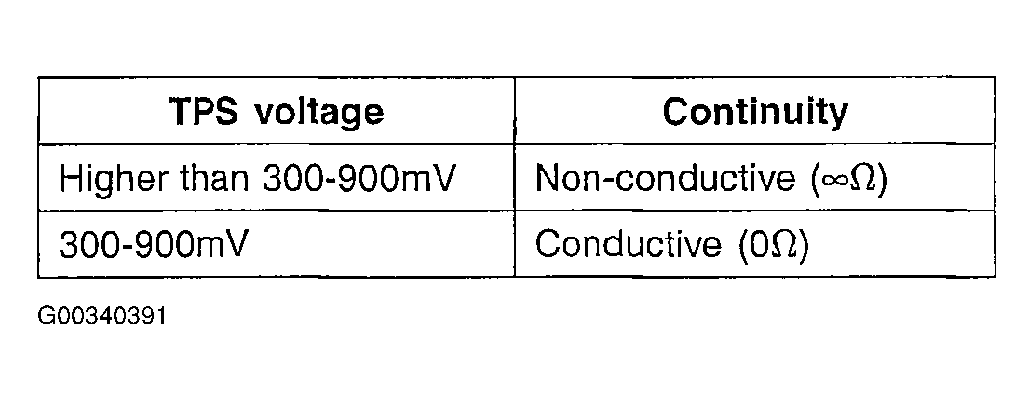

Fig 1: Identifying Idle Switch Voltage/Resistance Reference Table
Courtesy of KIA MOTORS AMERICA, INC.

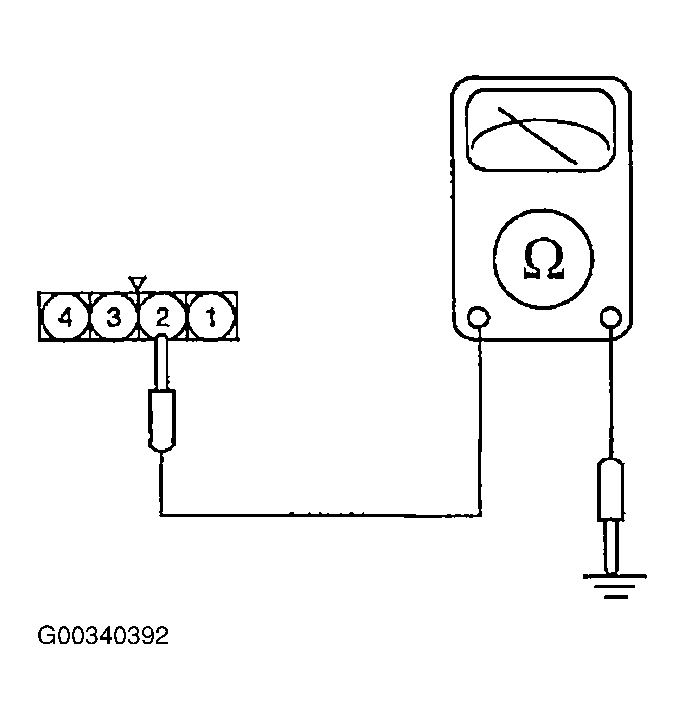

Fig 2: Idle Switch Resistance Test Procedure
Courtesy of KIA MOTORS AMERICA, INC.
If out of specification, replace the throttle position sensor.
