Using Hi-Scan (Pro)

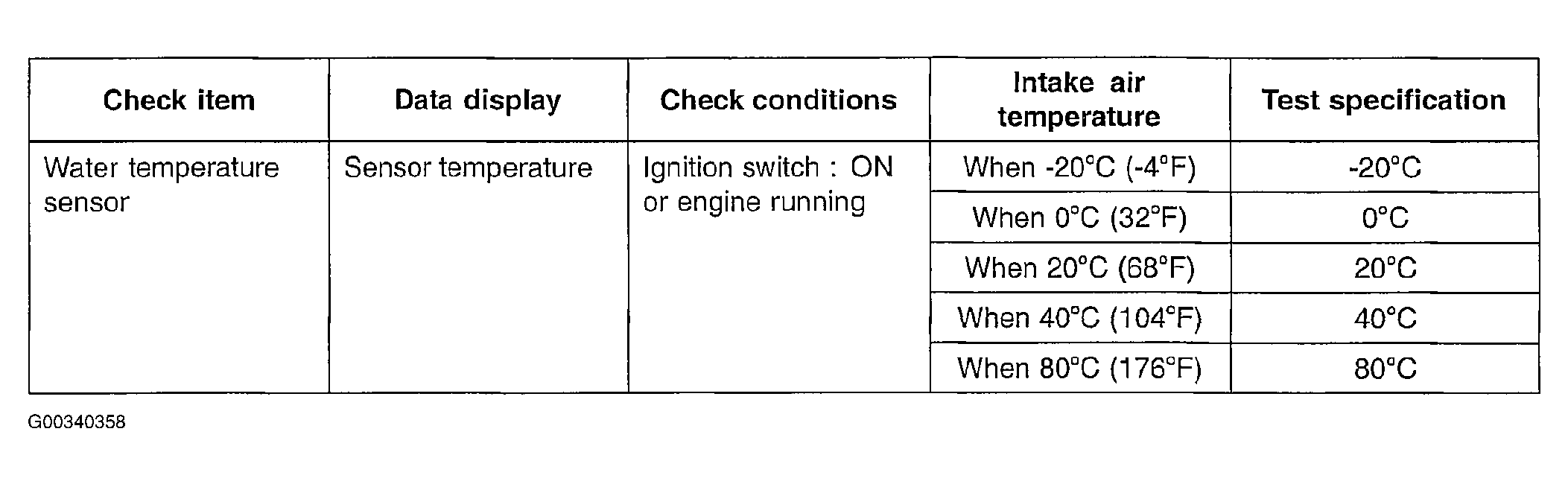

Fig 1: Identifying WTS Hi-Scan (Pro) Test Specification Table
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
