Using Multi-Meter

  1. Remove the water temperature sensor from the intake manifold.
  2. With the temperature sensing portion of the water temperature sensor immersed in hot water, check the resistance.

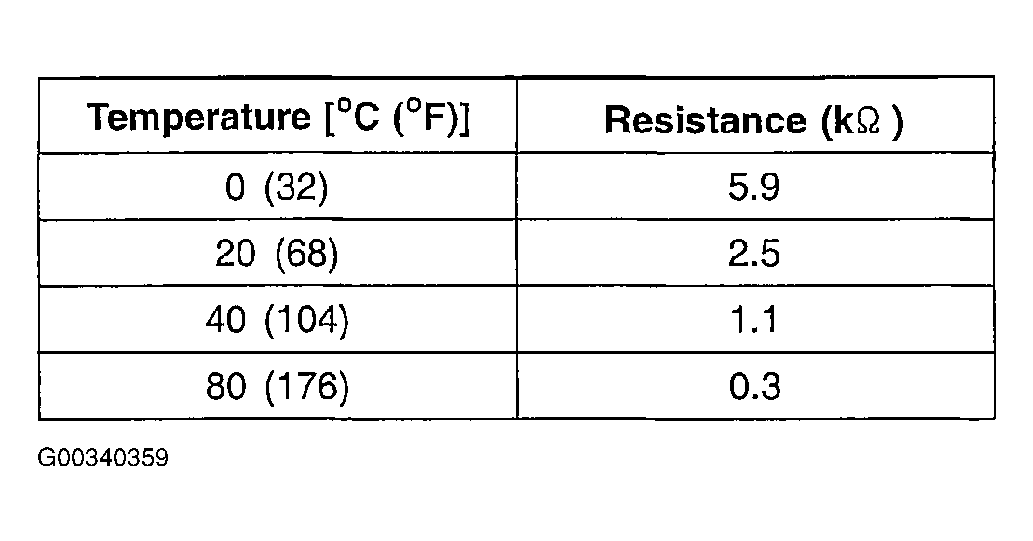

    Fig 1: Identifying WTS Temperature/Resistance Reference Table
    G00340359Courtesy of KIA MOTORS AMERICA, INC.
  3. If the resistance deviates from the standard value greatly, replace the sensor.

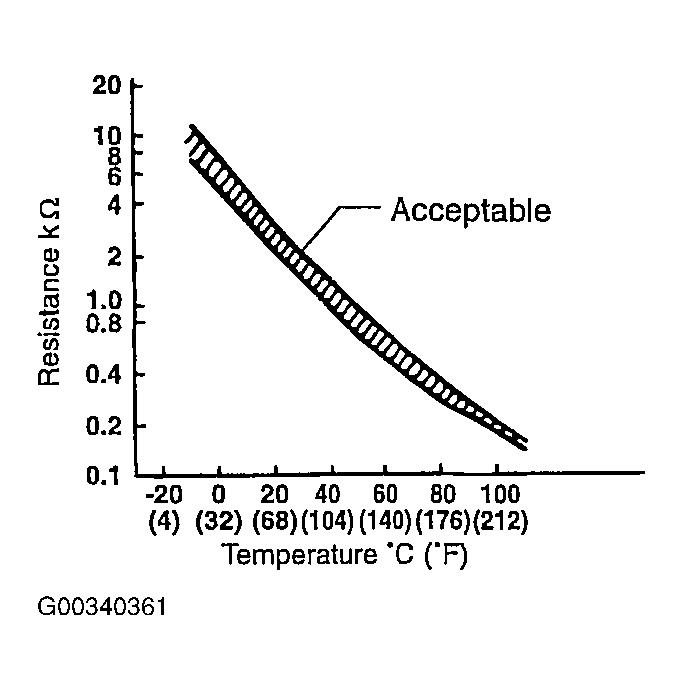

    Fig 2: Identifying Acceptable Deviations To Temperature/Resistance Reference Table
    G00340361Courtesy of KIA MOTORS AMERICA, INC.
