Circuit Diagram

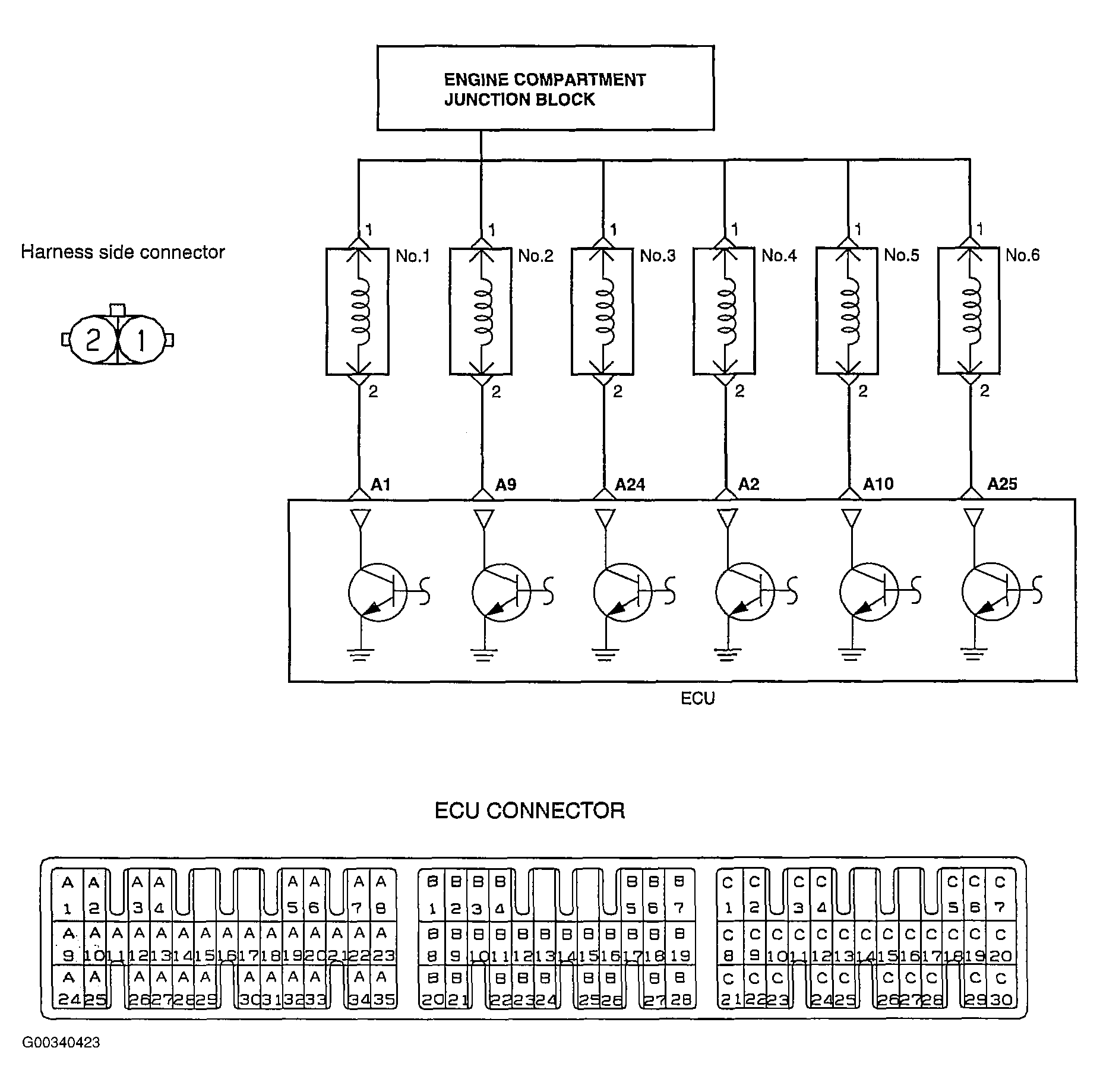

Fig 1: Identifying Fuel Injector Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
