Disassembly And Reassembly

If it is necessary to remove the key lock assembly, use a punch to make a groove on the head of the special bolt, and then use a screwdriver to remove the key lock assembly mounting bracket.

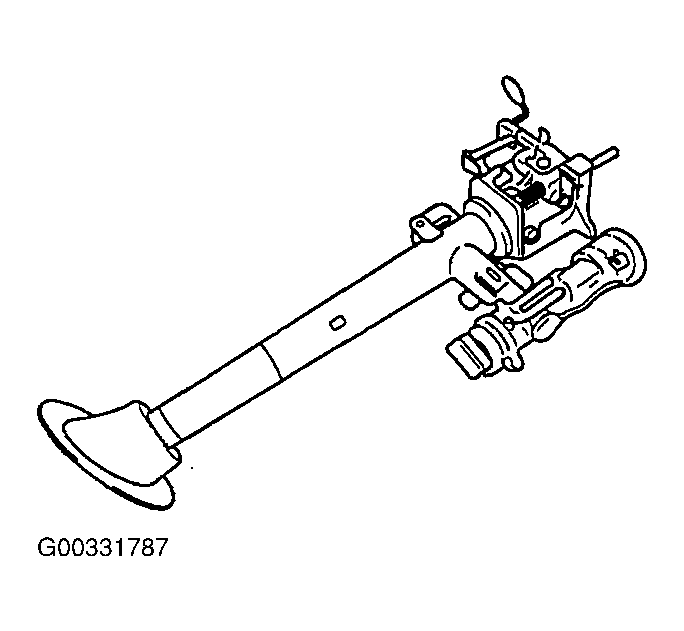

Fig 1: Steering Column With Key Lock Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disassemble the key lock assembly from the steering column shaft.

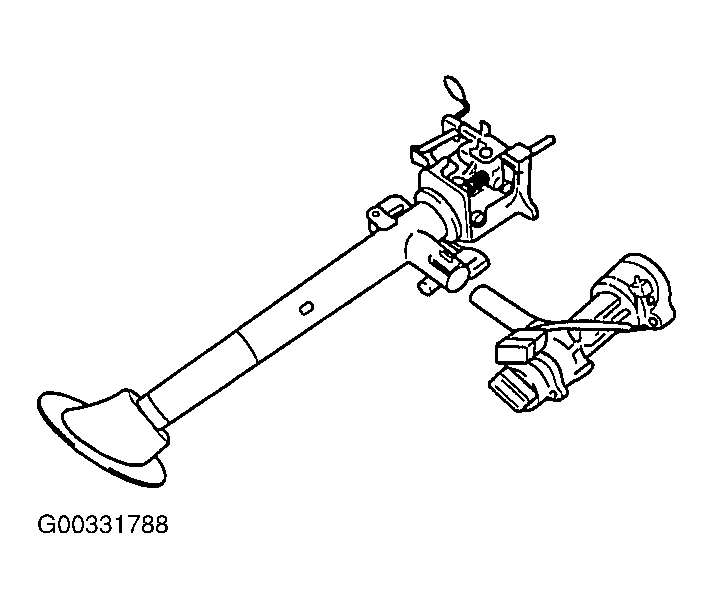

Fig 2: Identifying Key Lock Assembly Removed From Steering Column
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
