Anti-Lock Braking System Control Module: Components

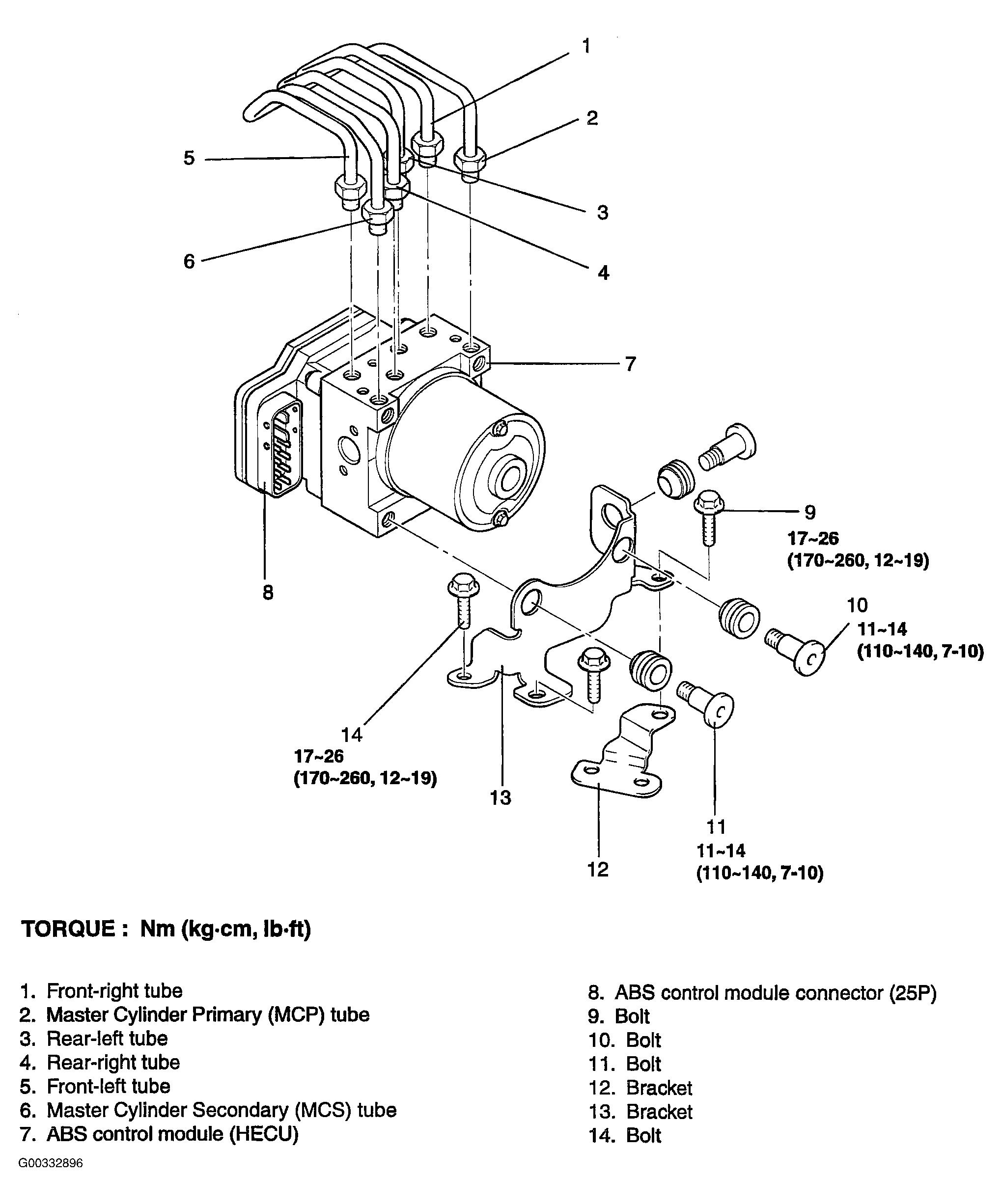

Fig 1: Identifying System Control Module Components
G00332896Courtesy of KIA MOTORS AMERICA, INC.
