Battery Separation

  1. When the battery is reconnected after having been disconnected/removed while in ARM mode. ARM mode continues.
  2. When the battery is reconnected after having been disconnected/removed, and after the alarm completes, the alarm will restart.
  3. When battery is reconnected after having been disconnected/removed during an active alarm, the alarm sequence will restart from the beginning.

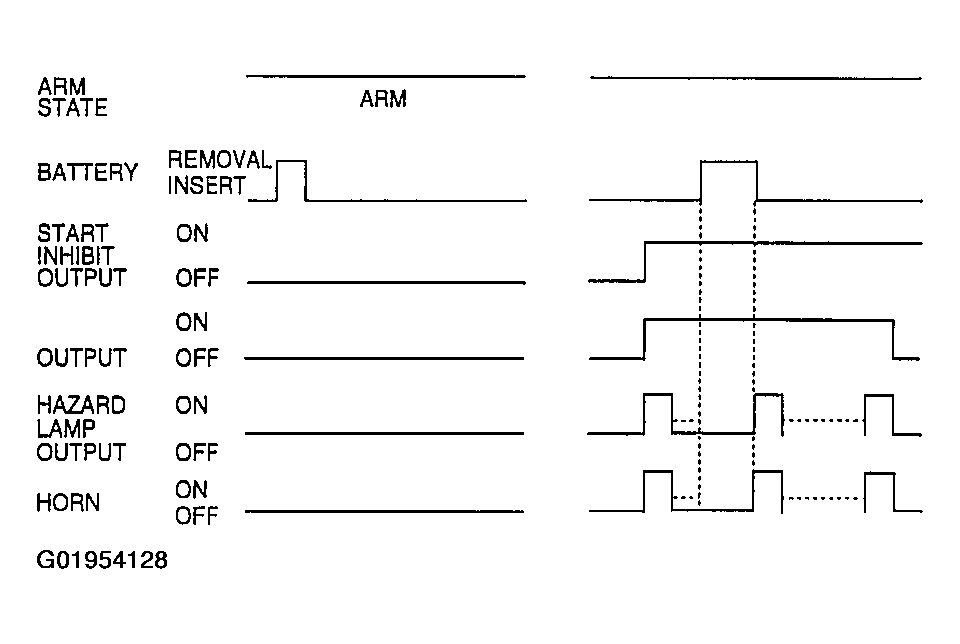

    Fig 1: Illustrating Battery Separation Function Chart
    G01954128Courtesy of KIA MOTORS AMERICA, INC.
