DISARM Function

  1. When UNLOCK is pressed on the RKE (Remote Keyless Entry control) the Anti-Theft System will DISARM, the hazard lamps blink 2 times and the doors unlock

    (Whether entry points are Open or Closed is irrelevant)

  2. In DISARM mode, the ALARM and start inhibitor do not function.
  3. When repeating UNLOCK on the RKE, the hazard lamps blink 2 times and the doors unlock.
  4. When the doors UNLOCK switch is on, the Anti-Theft system is in DISARM mode and the doors are unlocked, however the hazard lamps do not blink

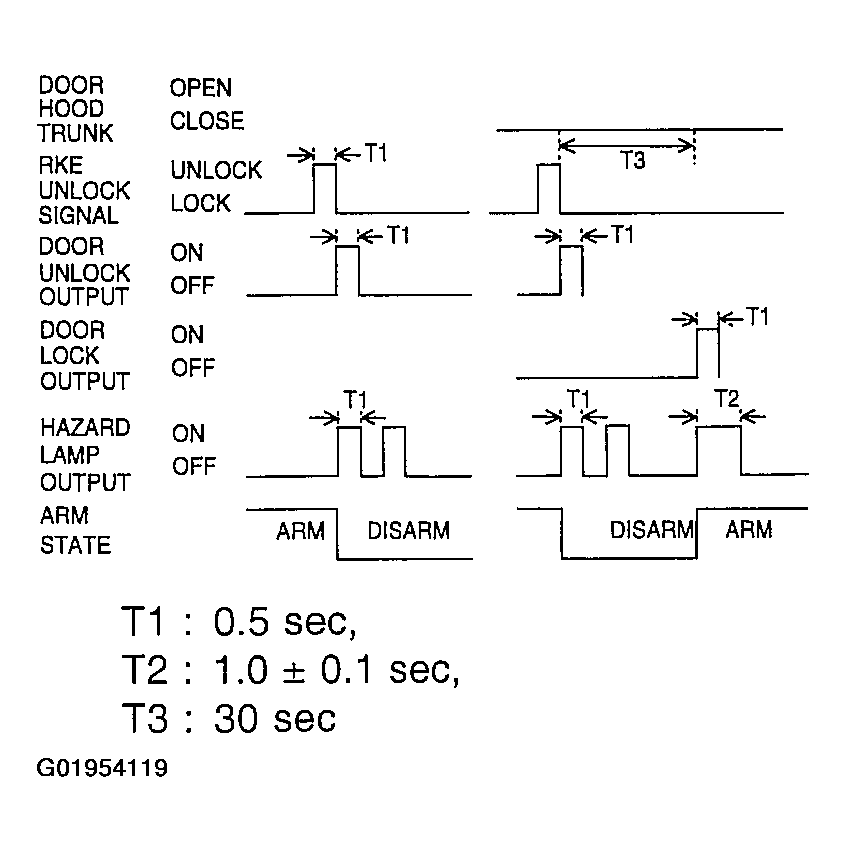

    Fig 1: Illustrating DISARM Function Chart
    G01954119Courtesy of KIA MOTORS AMERICA, INC.
