Unlocking With The Key

  1. When the trunk is opened using the trunk UNLOCK switch during ARM mode, the alarm is set to hold. The door and hood shall remain in ARM mode.
  2. When the trunk is closed following Step 1) and it remains closed for more than 2 seconds, all door locks are checked and ARM mode is reset. (If any door is unlocked during lock check, all doors will lock.)
  3. Unlocking the driver and the assist door with the key, the DISARM mode shall be on

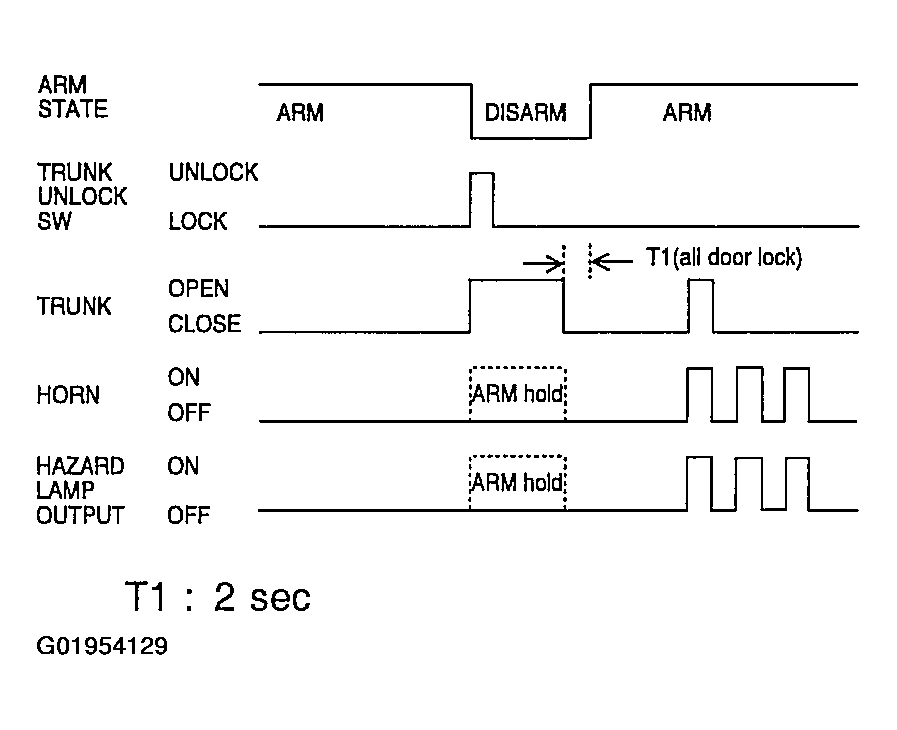

    Fig 1: Illustrating Unlocking With The Key Function Chart
    G01954129Courtesy of KIA MOTORS AMERICA, INC.
