Hood Switch Inspection

Disconnect the 1P connector from the hood switch.
Check for continuity between the terminals and ground according to the table.

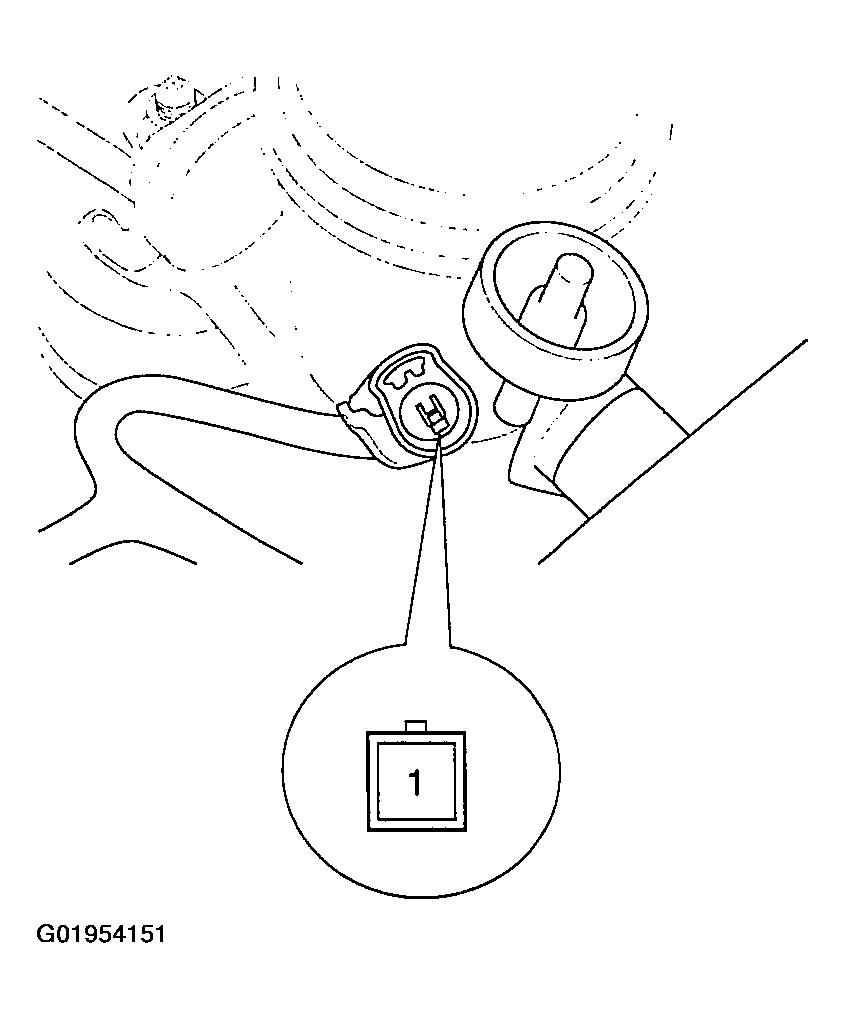

Fig 1: Illustrating Hood Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Switch Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
