Keyless Entry System: Troubleshooting

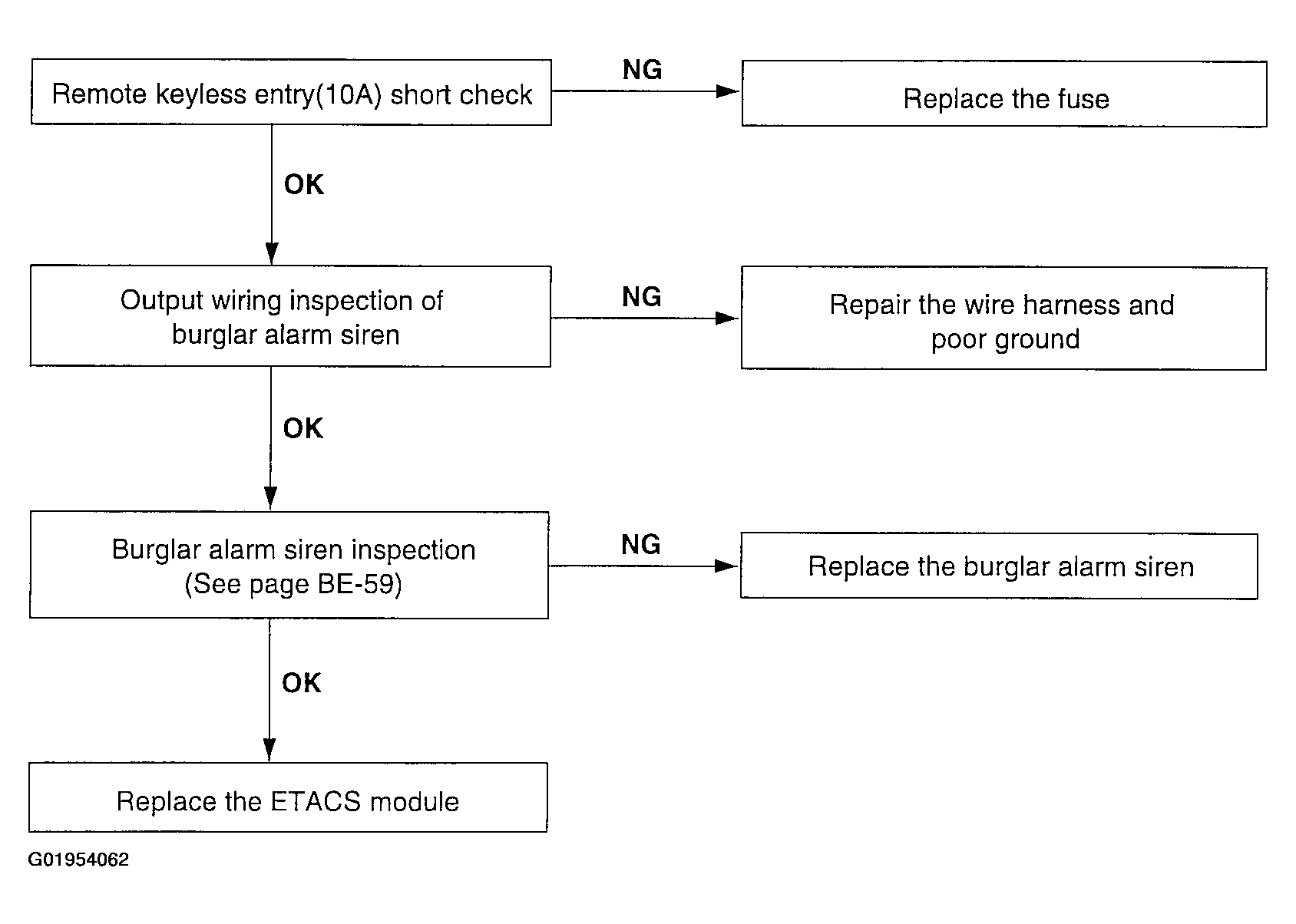

Alarm does not work. (Hazard lamp works)

Fig 1: Alarm Does Not Work Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.
When hood is opened inside the car siren does not work.

Fig 2: When Hood Is Opened Inside The Car Siren Does Not Work Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

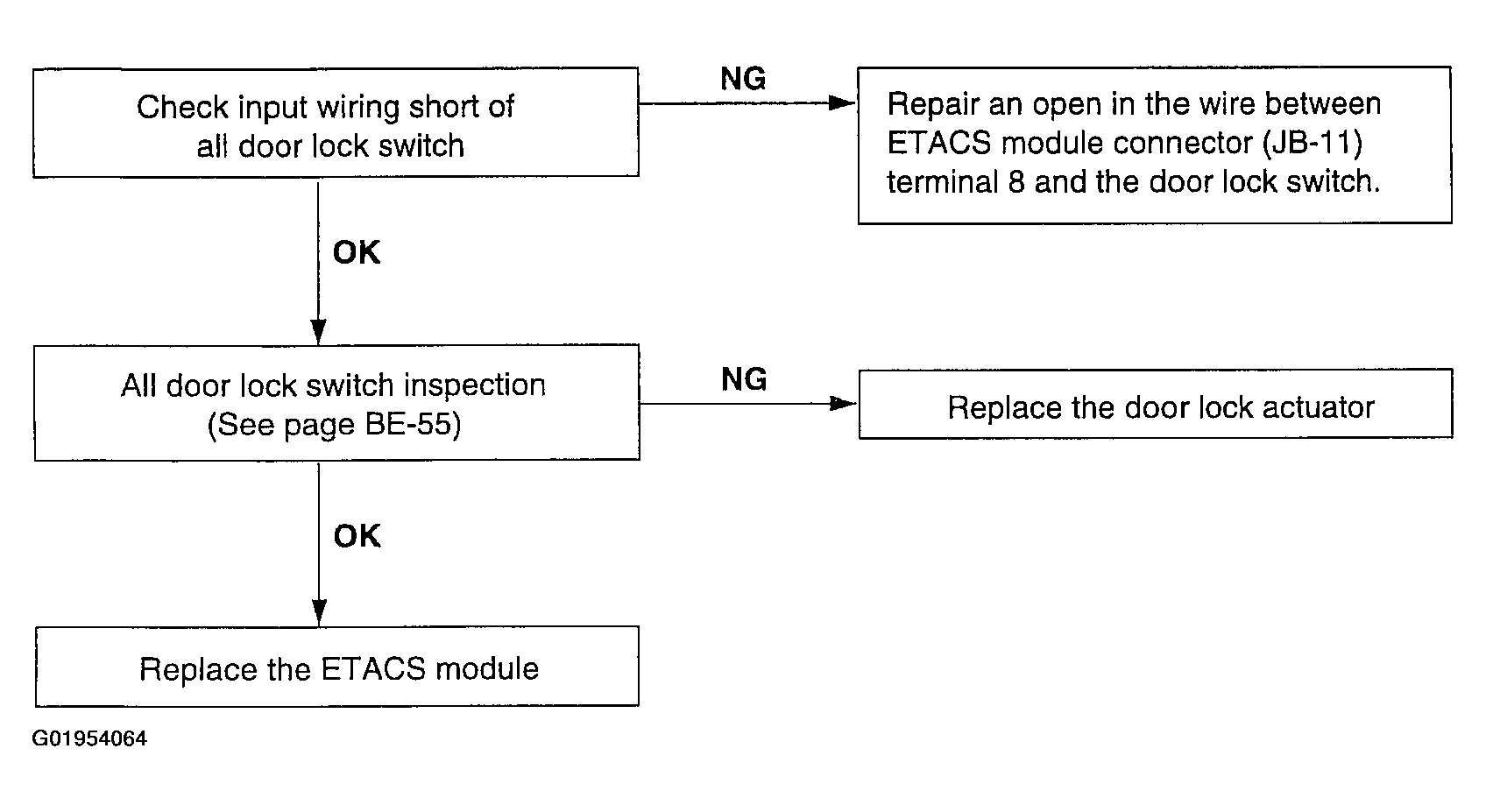

When door is opened inside the car siren does not work (if tailgate and hood is opened, alarm works)

Fig 3: When Door Is Opened Inside The Car Siren Does Not Work Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

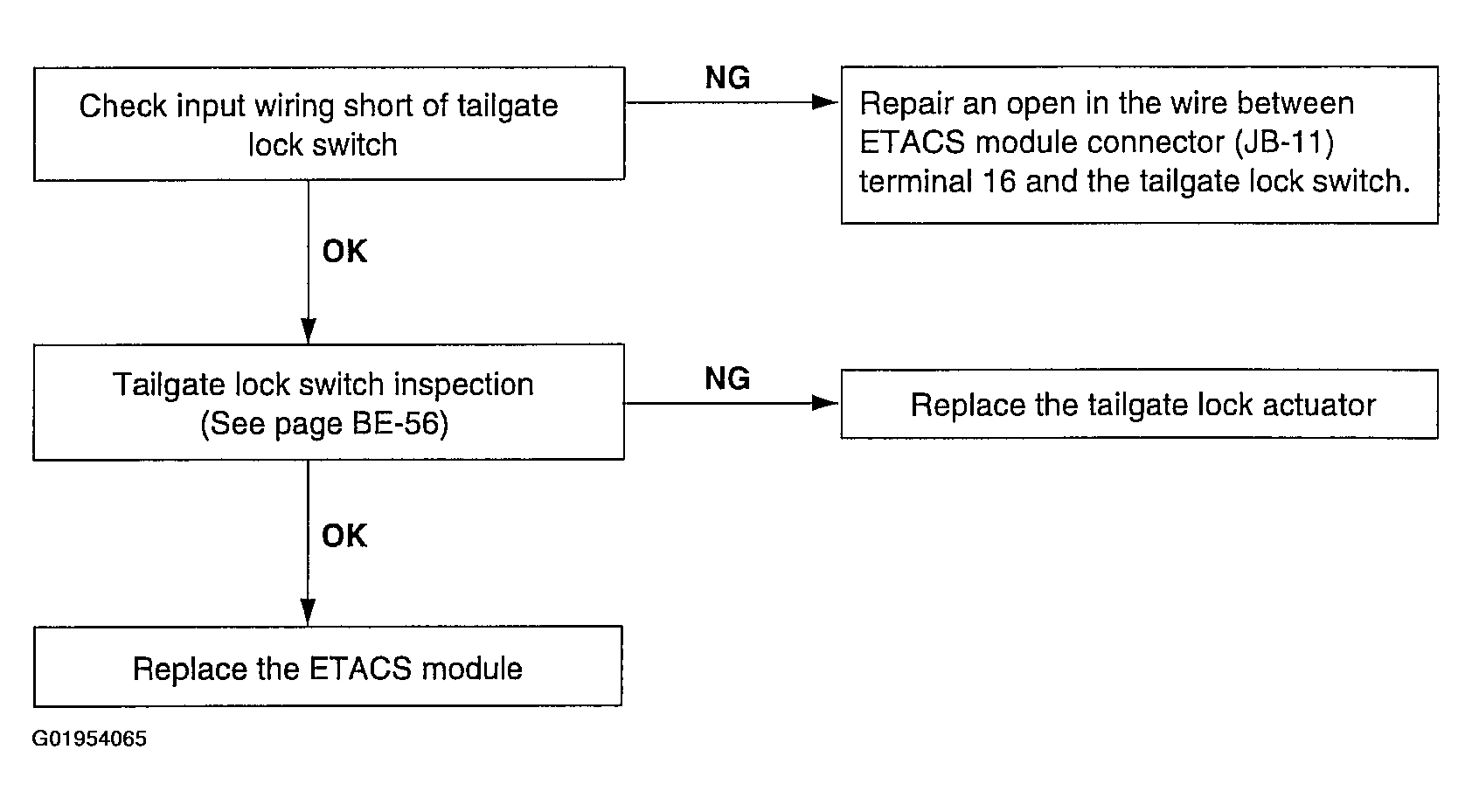

When tailgate is opened inside the car siren does not work.

Fig 4: When Tailgate Is Opened Inside The Car Siren Does Not Work Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.
When the vehicle is locked by the transmitter, central door lock function works but hazard lamp doesn't blink.

Fig 5: Central Door Lock Function Works But Hazard Lamp Doesn't Blink Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

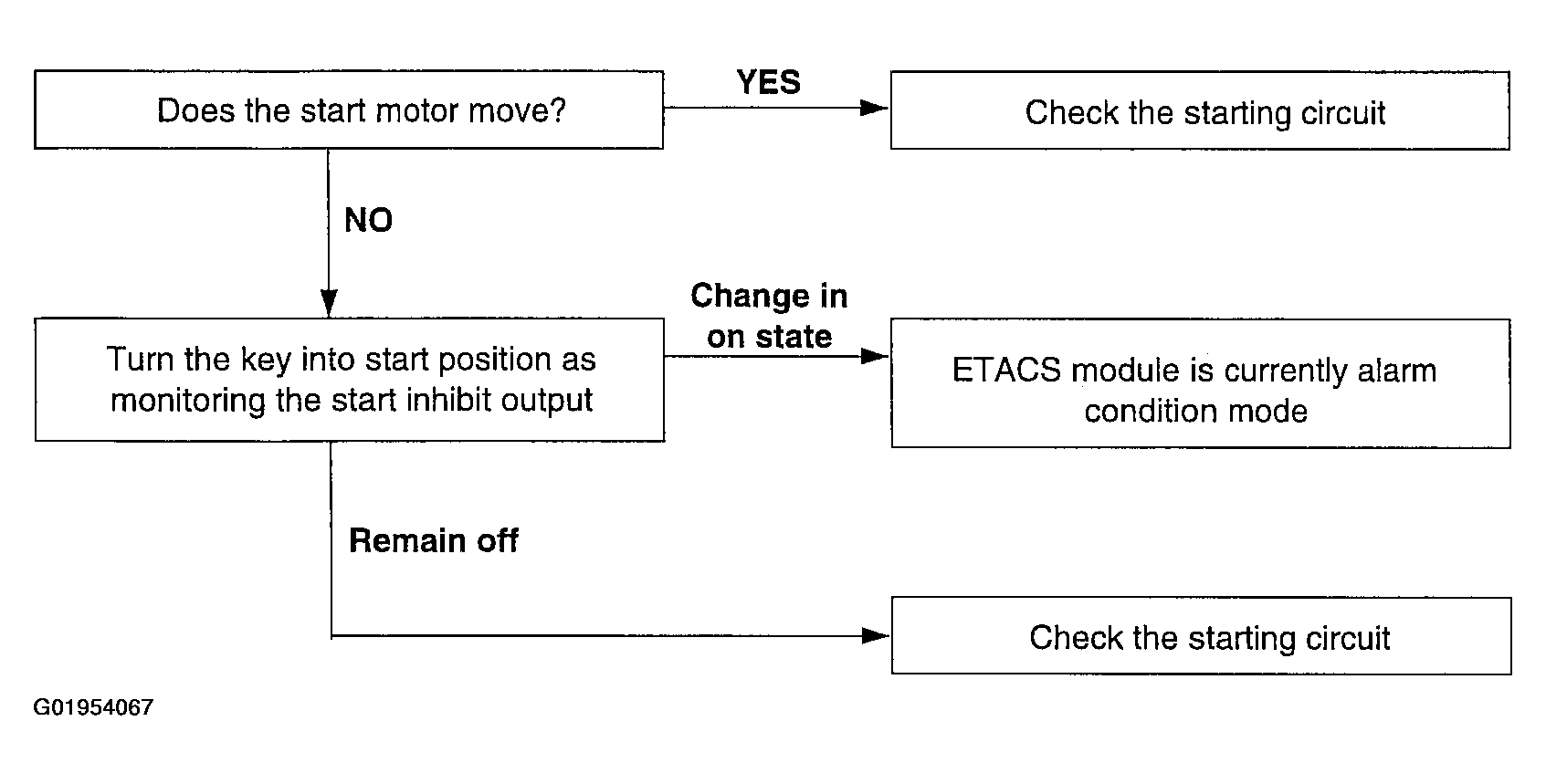

Engine does not start, when the alarm released condition.

Fig 6: Engine Does Not Start, When The Alarm Released Condition Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.

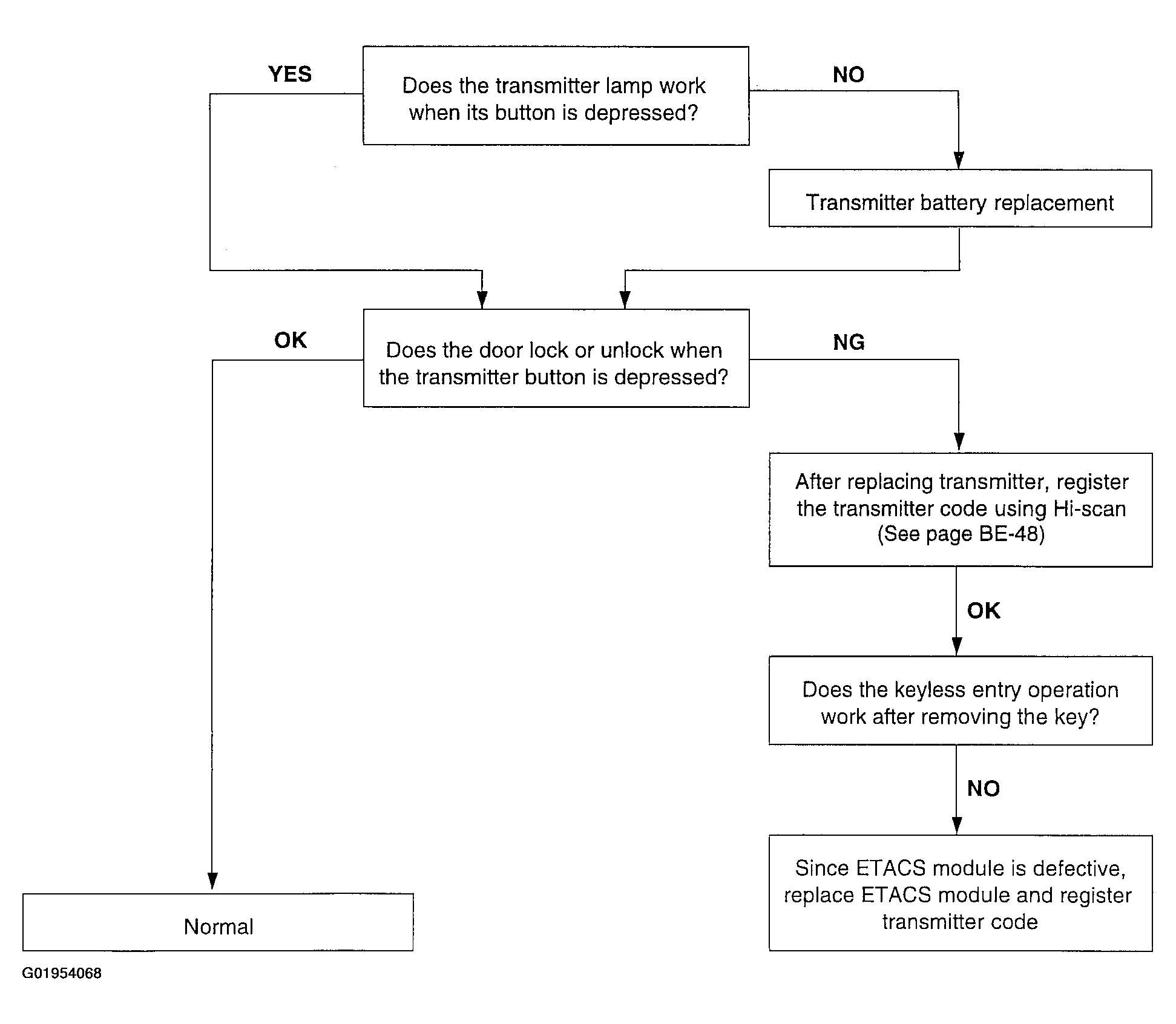

Central door lock function works, but keyless entry system does not work.

Fig 7: Central Door Lock Function Works, But Keyless Entry System Does Not Work Troubleshooting Guide
Courtesy of KIA MOTORS AMERICA, INC.
