Power Window Relay Inspection

Check for continuity between the terminals.

1. There should be continuity between the No. 30 and No. 87 terminals when power and ground are connected to the No. 85 and No. 86 terminals.
2. There should be no continuity between the No. 30 and No. 87 terminals when power is disconnected.

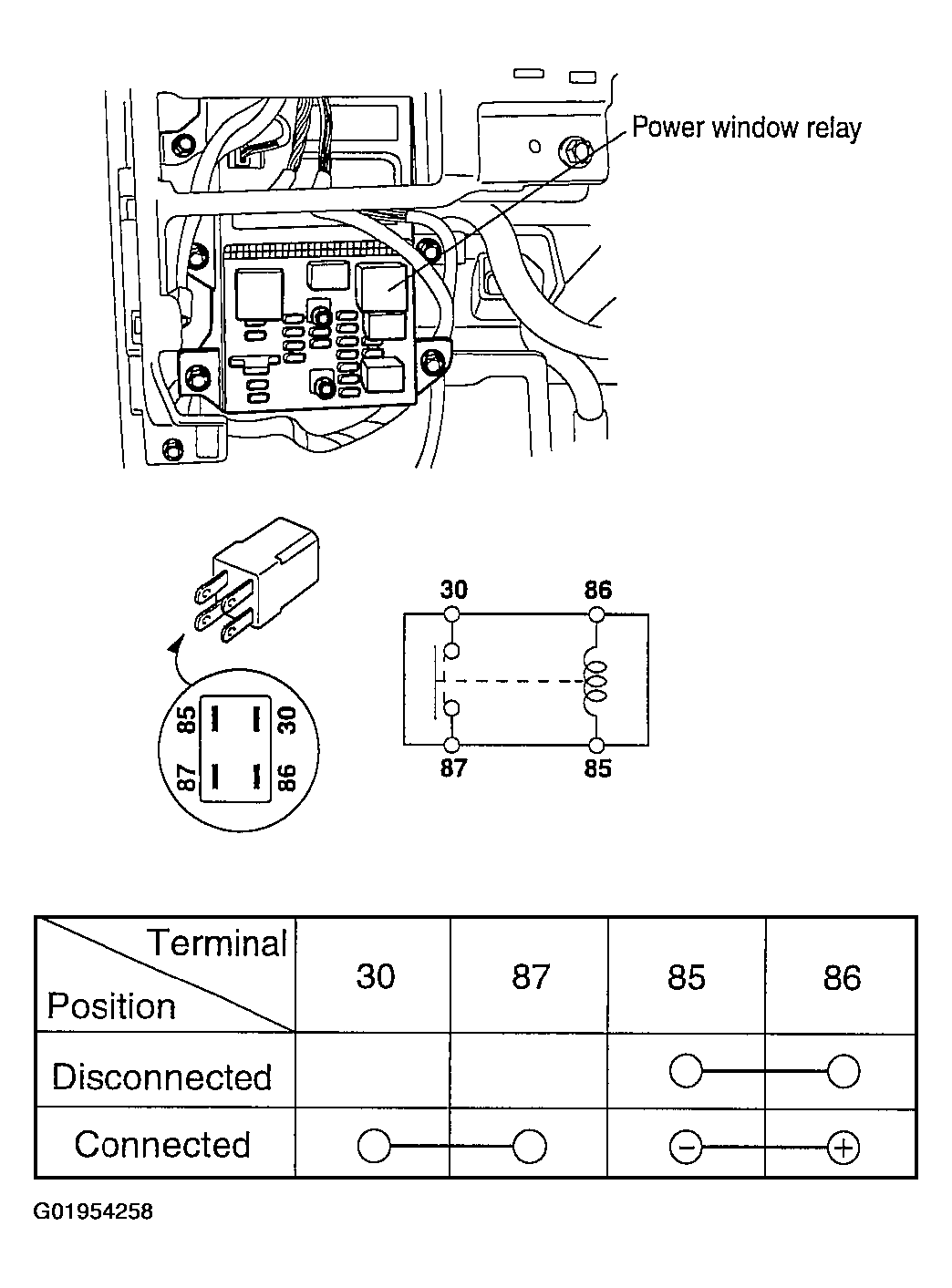

   Fig 1: Testing Power Window Relay Continuity

   Courtesy of KIA MOTORS AMERICA, INC.
