Cruise Control Module: Inspection

Connect a voltmeter between cruise control unit terminals and ground. (Connector connected)
Turn ignition switch ON and check that terminal voltages are as described in the following illustration.

Fig 1: Illustrating Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

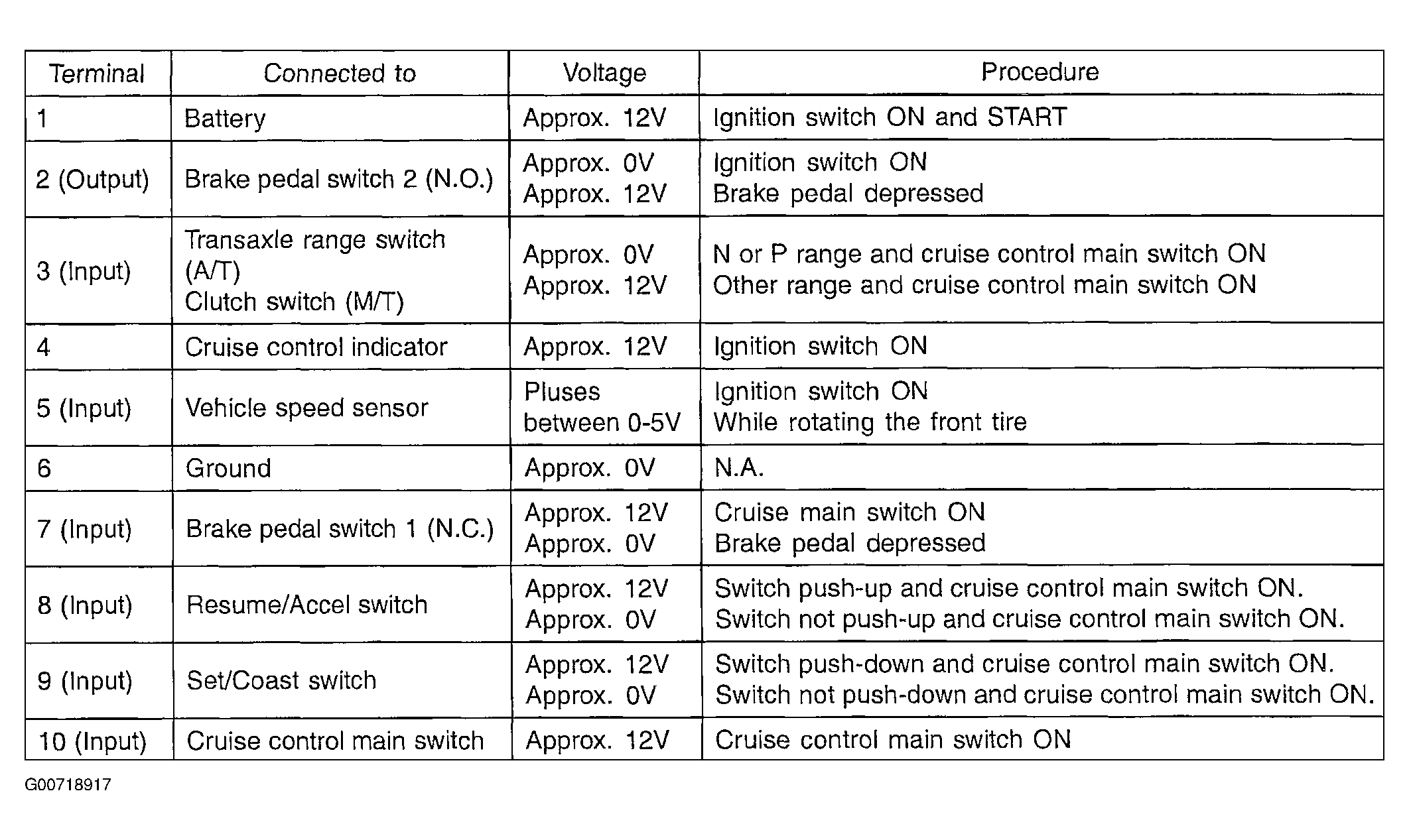

Fig 2: Terminal Voltage Chart
Courtesy of KIA MOTORS AMERICA, INC.
