Cruise Control Module: Removal

  1. Disconnect battery negative cable.
  2. Disconnect cruise control cable from throttle body.
  3. Disconnect cruise control cable from cruise control module.

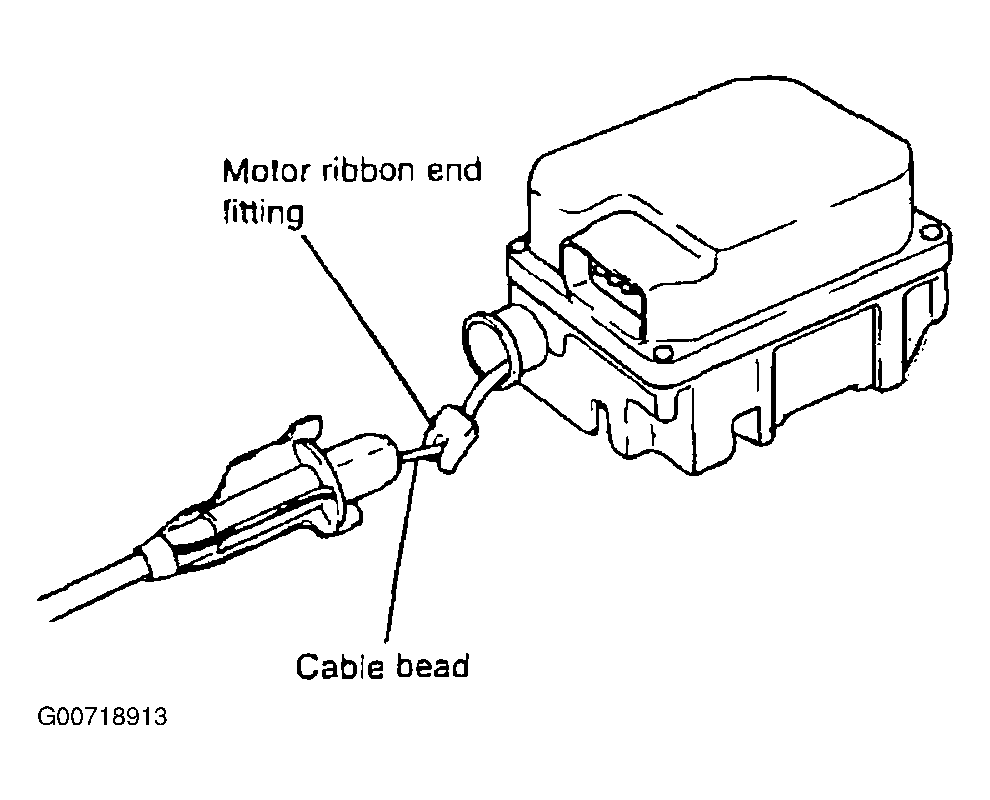

    Fig 1: Disconnecting Cruise Control Cable
    G00718913Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect control module connector from cruise control module.
  5. Remove one bolt and two nuts securing control module with bracket.

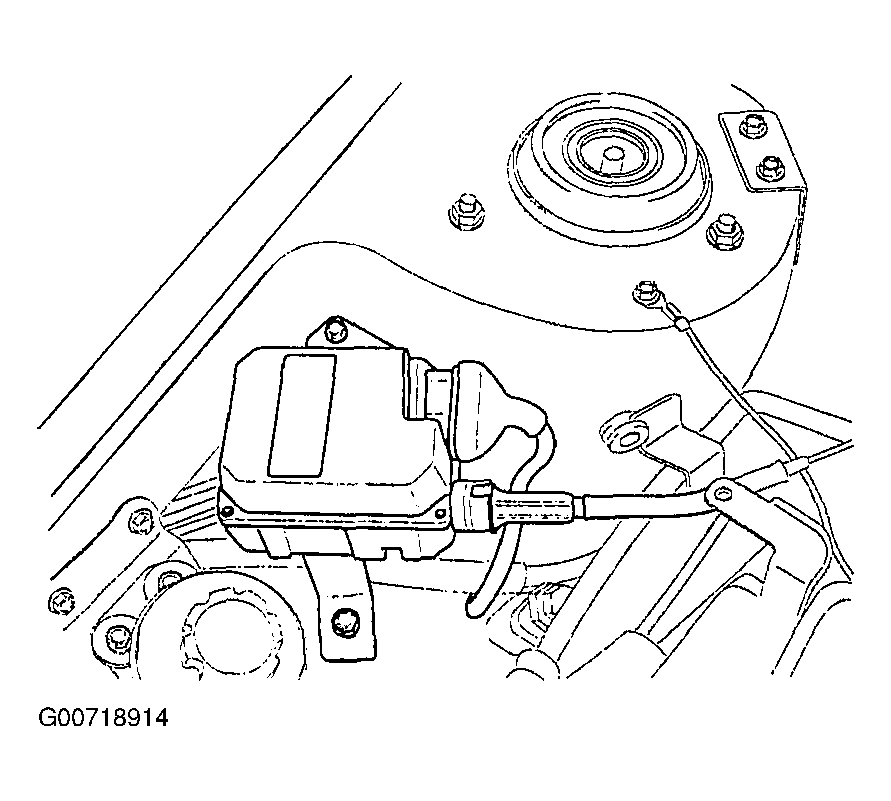

    Fig 2: Removing Control Module Assembly
    G00718914Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove control module with bracket from engine compartment.
  7. Remove three bolts attaching cruise control module to bracket.
  8. Remove control module from bracket.
