Components Operations

The vehicle immobilizer system consists of the ECM/PCM, the Immobilizer antenna unit (SMARTRA) and transponder built into the ignition key.

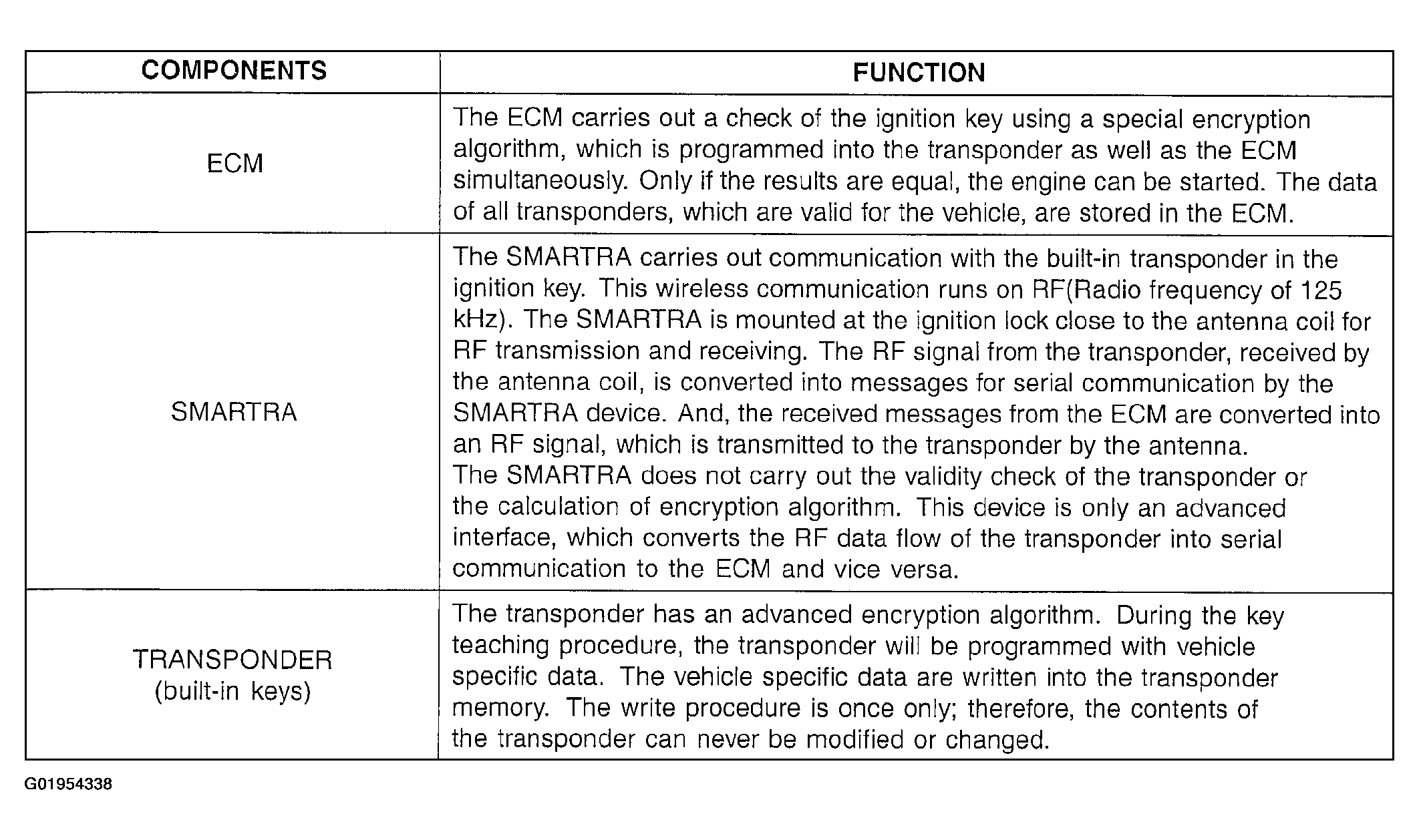

Fig 1: Illustrating Component Function

Courtesy of KIA MOTORS AMERICA, INC.
