Front Hub/Knuckle: Components

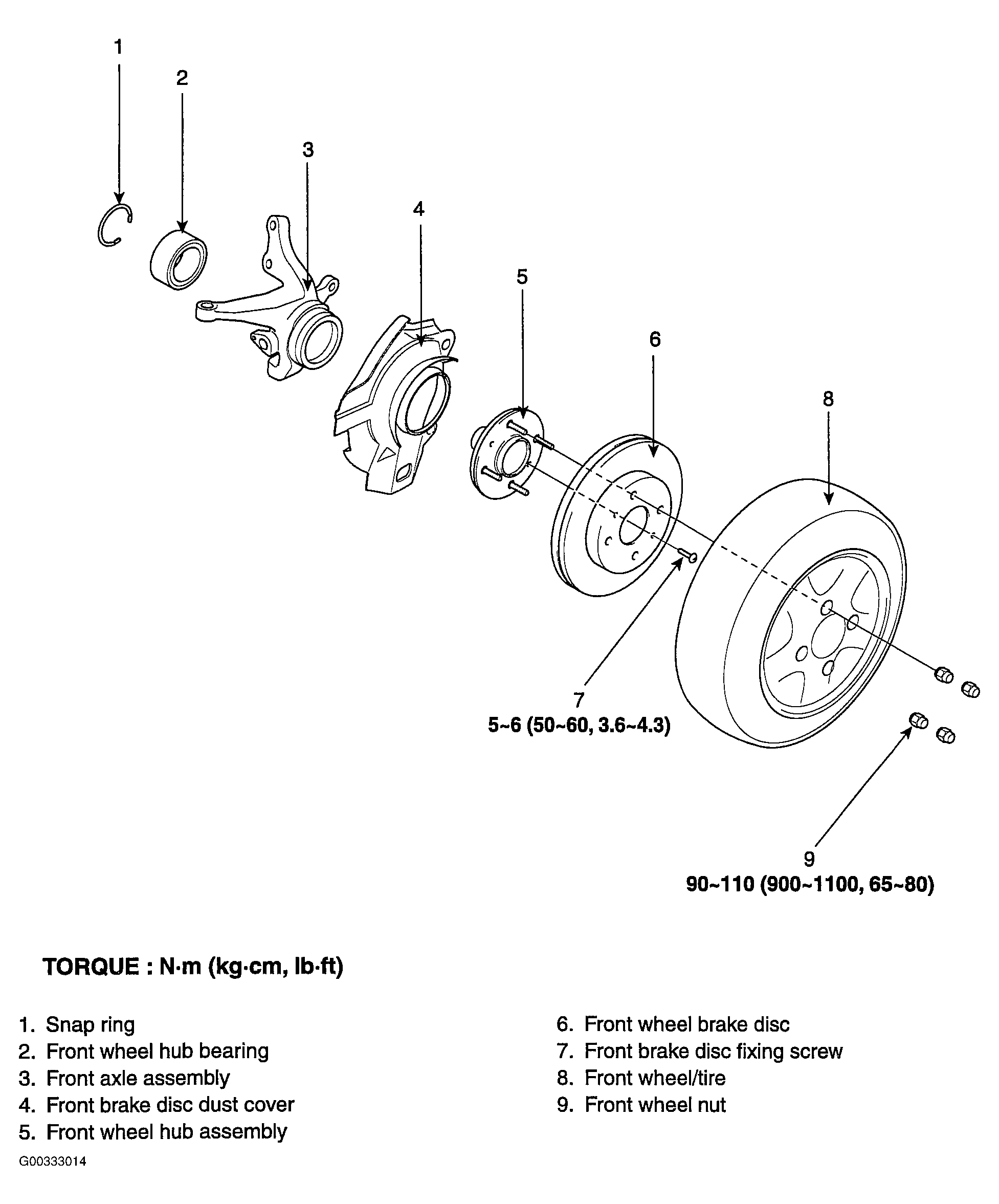

Fig 1: Identifying Front Hub/Knuckle Components

G00333014

Courtesy of KIA MOTORS AMERICA, INC.
