Strut Assembly: Components

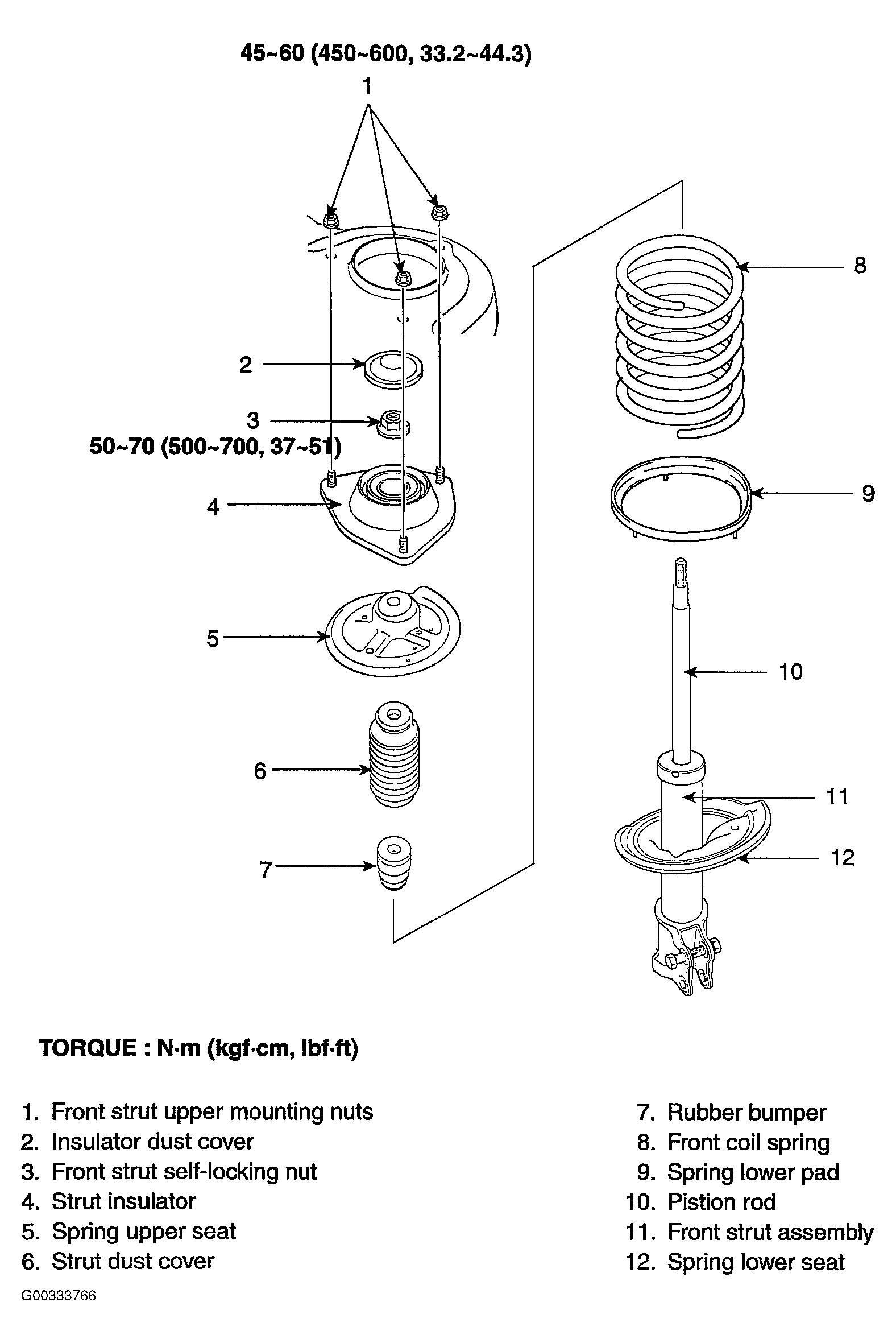

Fig 1: Exploded View Of Front Strut Assembly

G00333766

Courtesy of KIA MOTORS AMERICA, INC.
