Power Steering Oil Pump: Components

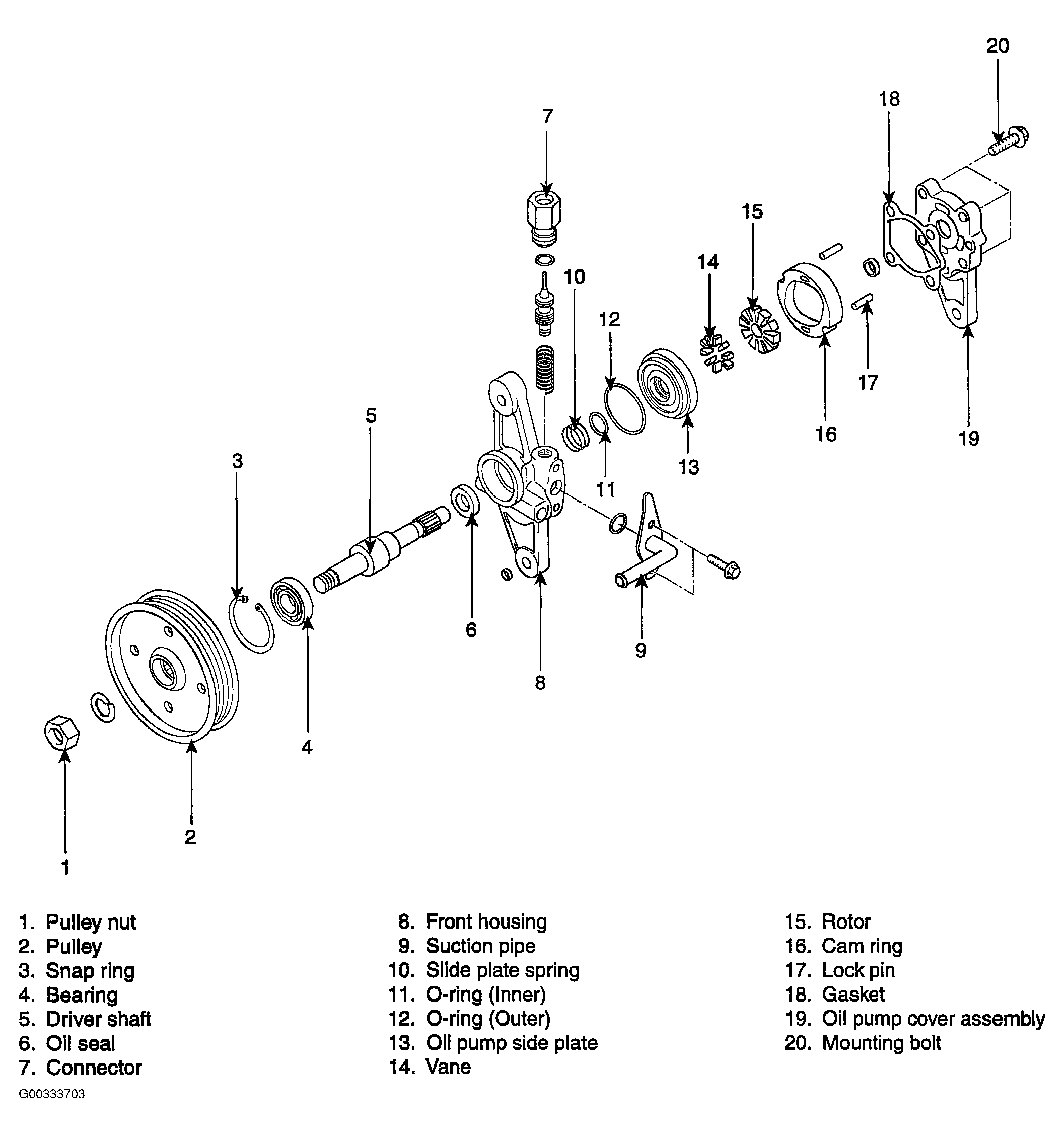

Fig 1: Exploded View Of Power Steering Oil Pump
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
