Monitor SCANTOOL Data
- Ignition "OFF"
- Install Scantool and Ignition "ON" & Engine"ON"

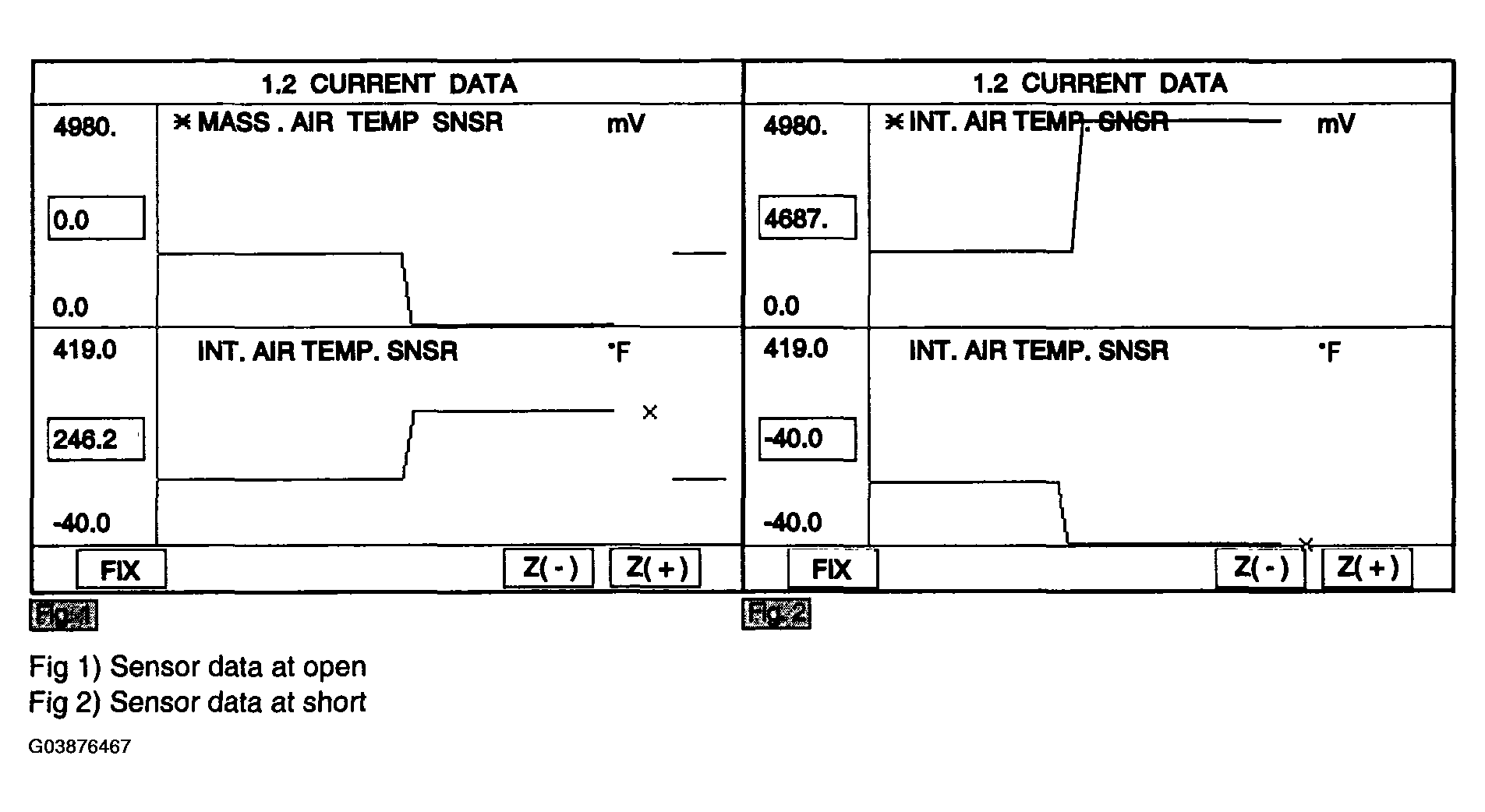

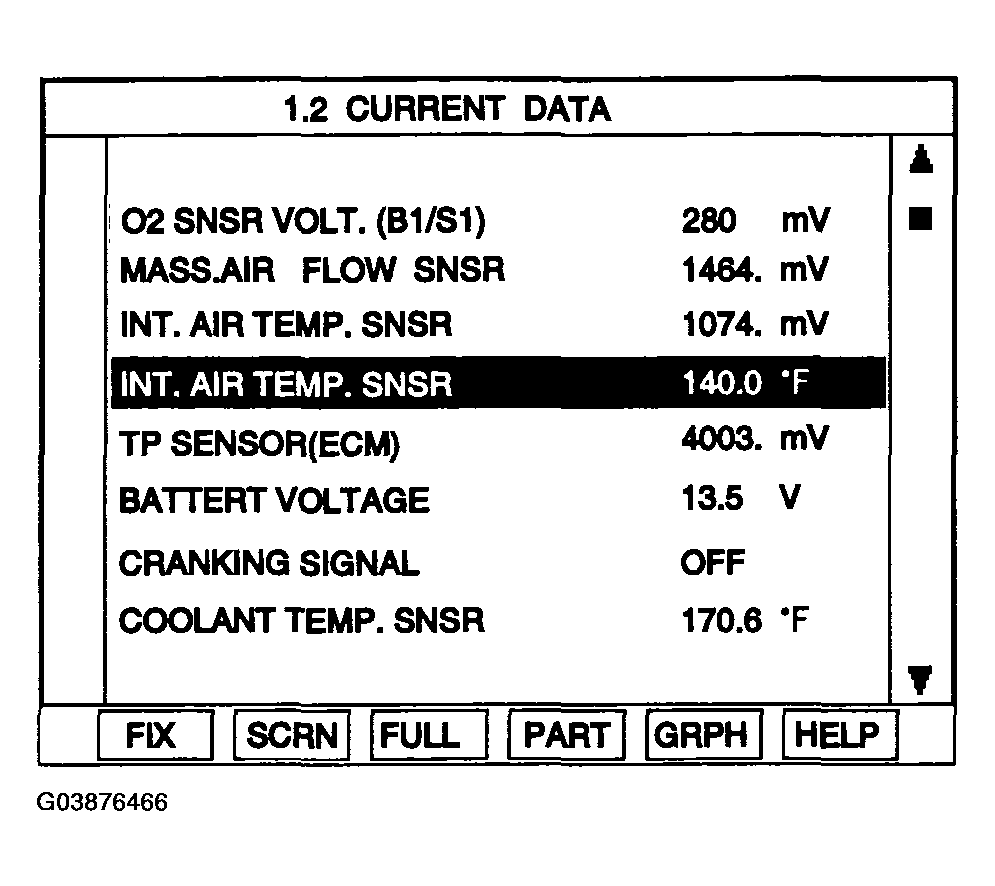

- Monitor Intake Air Temperature Sensor parameter on Current data.
Specification: (Error range is 2 ~ 3%)
TEMPERATURE SPECIFICATIONTemperature(°C/°F) -40(-40°F) -30(-22°F) -20(-4°F) 0(32°F) 20(68°F) 80(176°F) 100(212°F) 110(230°F) 120(248°F) Resistance(kΩ) 45.3 25.6 15.1 5.8 2.5 0.33 0.19 0.16 0.13 Voltage(V) 4.48 4.34 4.12 3.46 2.57 0.64 0.39 0.34 0.27 Courtesy of KIA MOTORS AMERICA, INC.
- Is the measured IATS parameter displayed within specification?
YES
- Fault is intermittent caused by poor contact in the sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/Harness Inspection" procedure.
