Power Output Circuit Inspection

Check for open in harness
1. Ignition "OFF"
2. Disconnect IG failure sensor connector and ignition coil connectors.
3. Measure resistance between terminal "3" of IG failure sensor harness connector and "1" of each ignition coil harness connector.
  Specification: Approx. below 1Ω

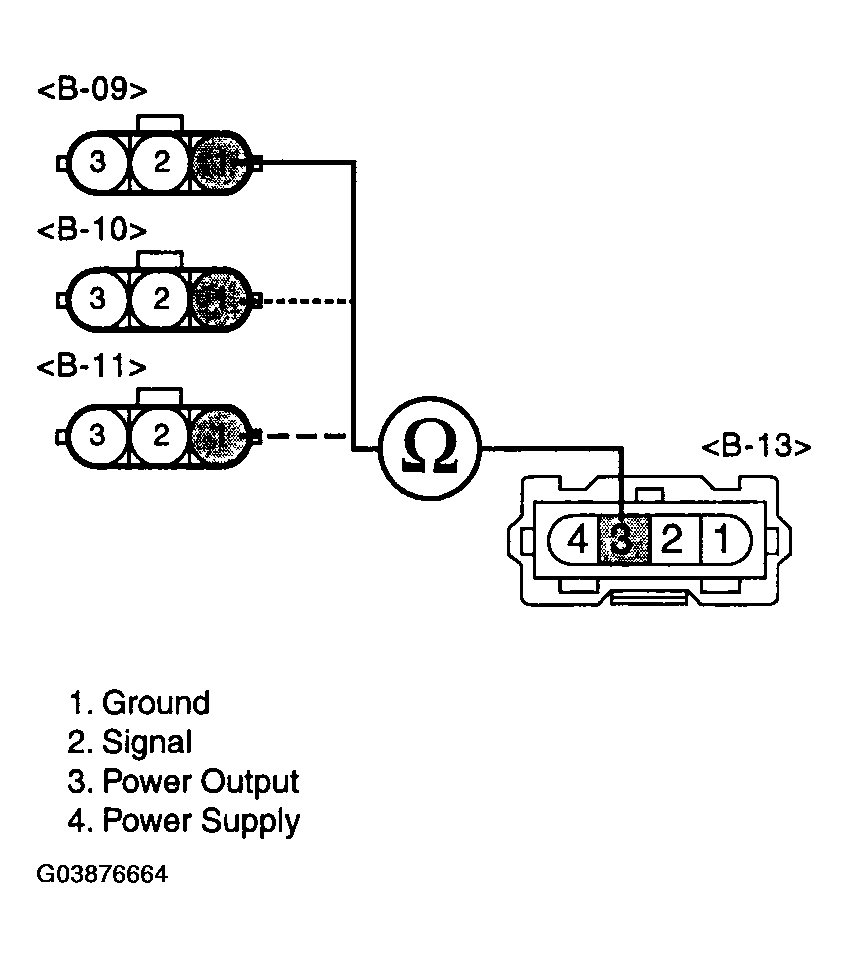

  Fig 1: Measuring Resistance Between Terminal Of IG Failure Sensor Harness Connector And Of Each Ignition Coil Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Check open in harenss between IG failure sensor and Ignition coil.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
