Power Circuit Inspection

Check power to IG failure sensor
1. Ignition "OFF"
2. Disconnect IG failure sensor connector.
3. Ignition "ON" & Engine "OFF"
4. Measure voltage between terminal "4" of IG failure sensor harness connector and chassis ground.
  Specification: B+

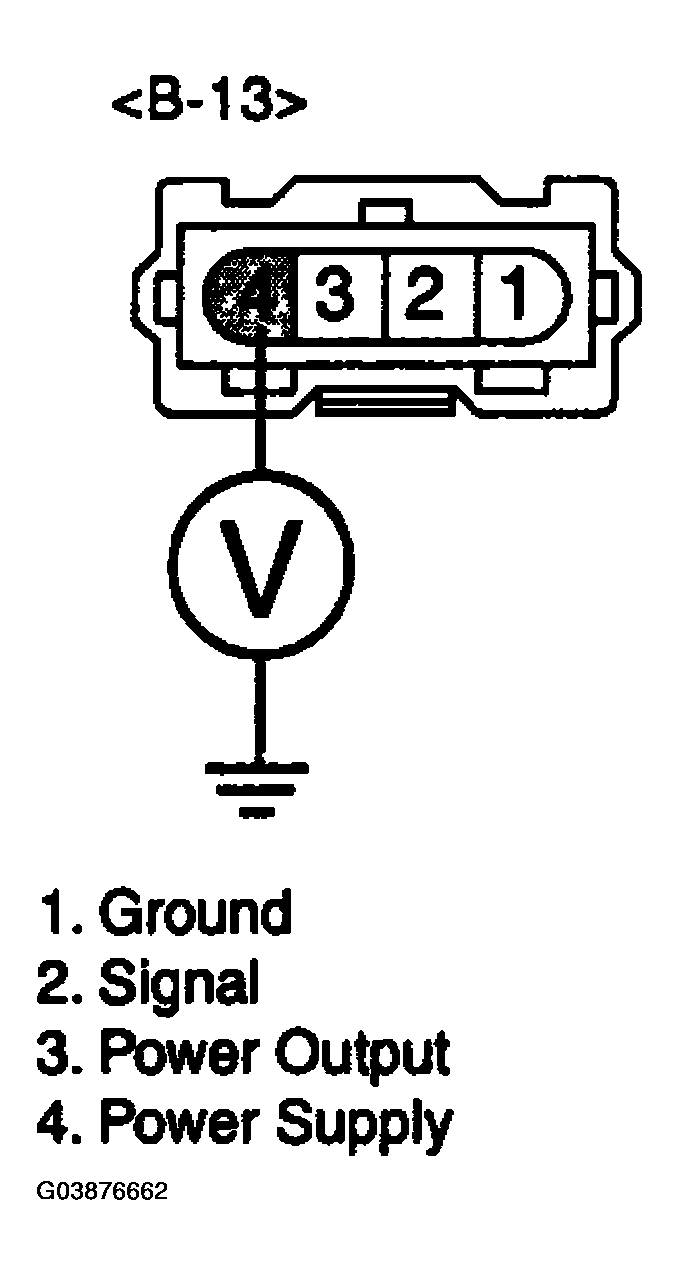

  Fig 1: Measuring Voltage Between Terminal "4" Of IG Failure Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specifications?
  YES
  - Go to "GROUND CIRCUIT INSPECTION " procedure.
  NO
  - Check for open or short to ground in harness, repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
