Signal Circuit Inspection

Check for short to ground in harness
1. Ignition "OFF"
2. Disconnect IG failure sensor & PCM connector.
3. Measure resistance between terminal "2" of IG failure sensor harness connector and chassis ground.
  Specification: Infinite

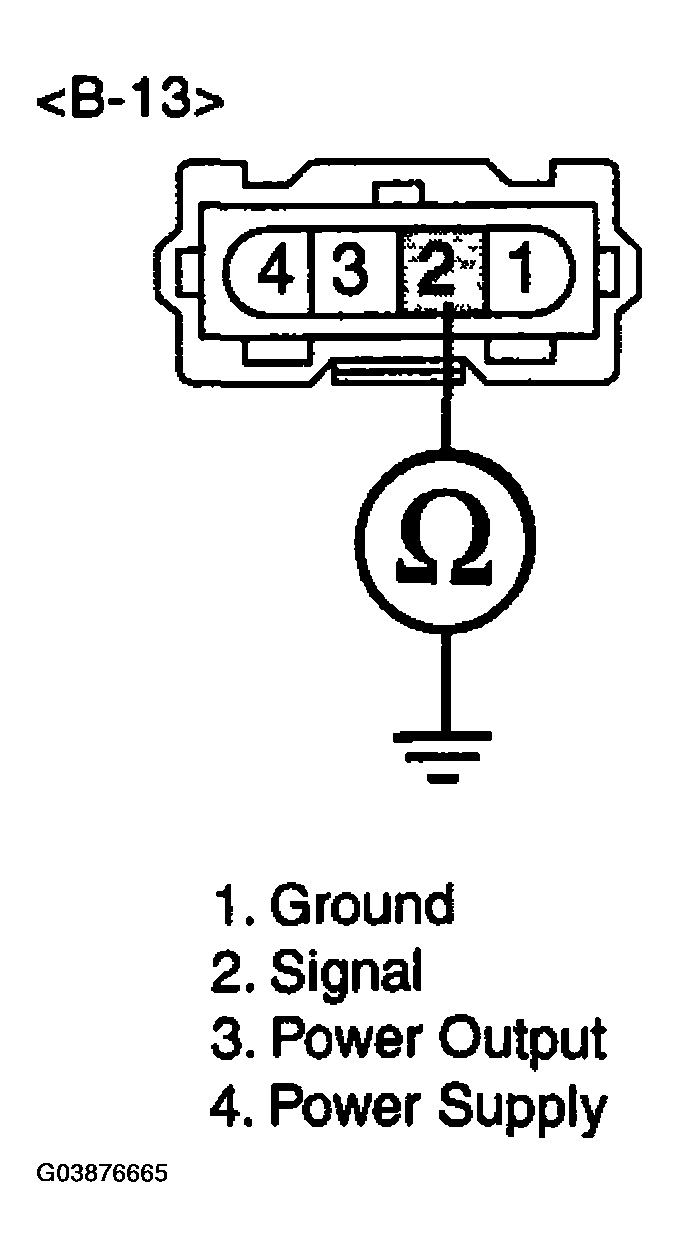

  Fig 1: Measuring Resistance Between Terminal Of IG Failure Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "Check for short to battery in harness" as below.
  NO
  - Check short to ground in signal harness.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to battery in harness
1. Ignition "OFF"
2. Disconnect IG failure sensor connector.
3. Measure resistance between terminals "2" and "4" of IG failure sensor harness connector.
4. Measure resistance between terminals "2" and "3" of IG failure sensor harness connector.
  Specification: Infinite

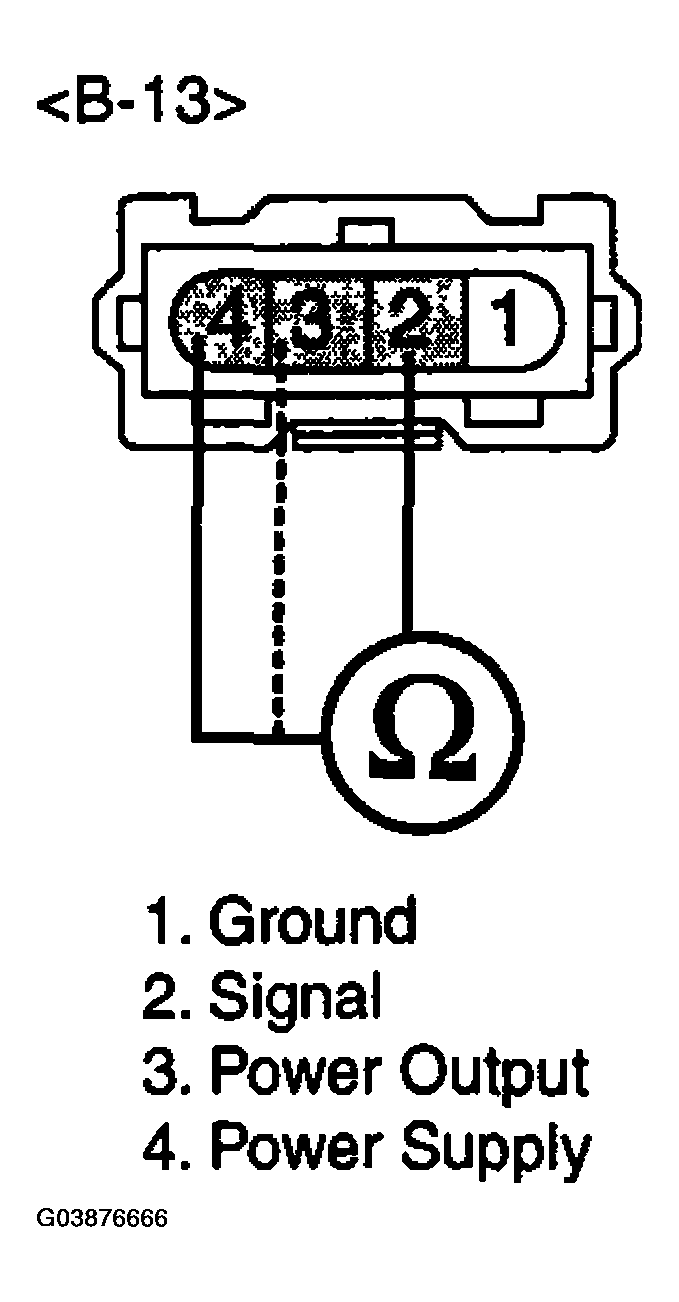

  Fig 2: Measuring Resistance Between Terminals "2" And "3" Of IG Failure Sensor Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured resistance within specifications?
  YES
  - Go to "Check for open in harness" as below.
  NO
  - Check short to battery in signal harness.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for open in harness
1. Ignition "OFF"
2. Disconnect IG failure sensor and PCM connector.
3. Measure resistance between terminal "2" of IG failure sensor harness connector and terminal "3" of PCM harness connector.
  Specification: Approx. below 1Ω

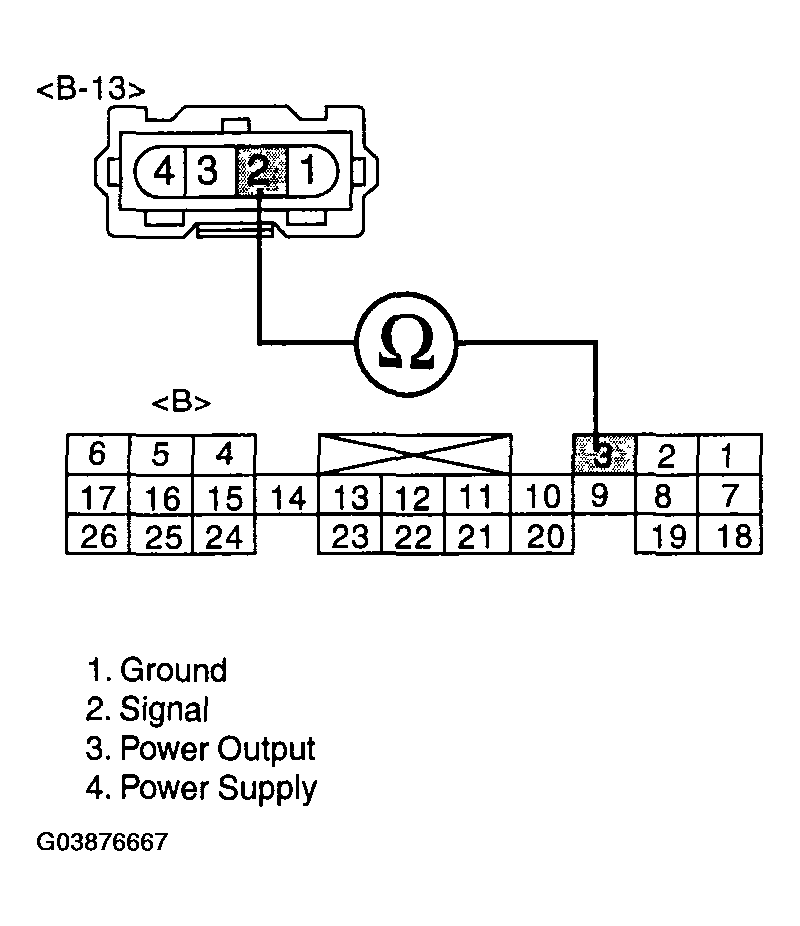

  Fig 3: Measuring Resistance Between Terminal Of IG Failure Sensor Harness Connector And Terminal Of PCM Harness Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "COMPONENT CIRCUIT INSPECTION " procedure.
  NO
  - Check open in harenss between IG failure sensor connector and PCM connector.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
