Component Inspection

  1. Ignition "OFF"
  2. Disconnect Fuel Level Sensor connector
  3. Measure resistance between terminal "1" and "2" of the Fuel Level Sensor connector during lifting fuel float up and down (To Component Side).
  4. Measure resistance between terminal "2" and "3" of the Fuel Level Sensor connector during lifting fuel float up and down (To Component Side).
    RESISTANCE CONDITION

    FLS Normal Parameter
    Float position Full gauge 3/4 1/2 1/4 Empty gauge
    Resistance 8Ω 36Ω 66Ω 110Ω 200Ω
    Fuel volume 68l 52l 38l 23l 5l

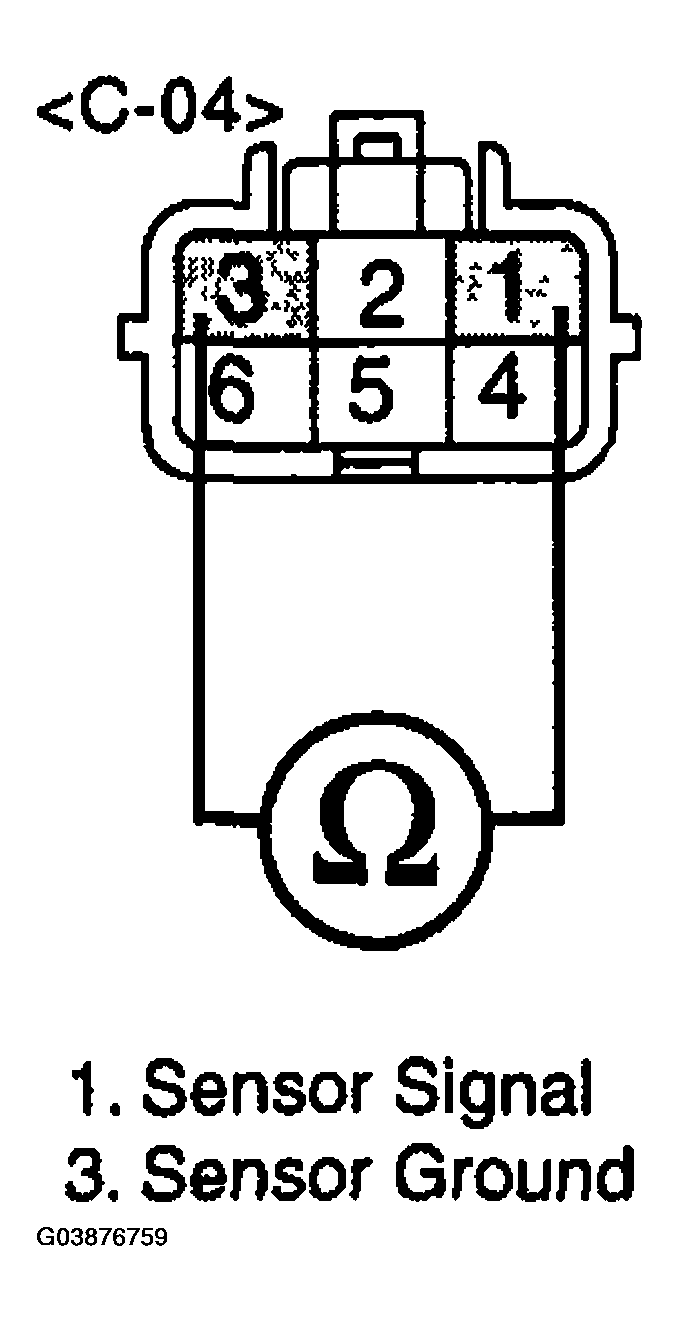

    Fig 1: Measuring Resistance Between Terminal "2" And "3" Of Fuel Level Sensor Connector
    G03876759Courtesy of KIA MOTORS AMERICA, INC.
  5. Does the measured resistance of FLS change during lifting up and down the fuel level float?

    Yes

    • Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Substitute with a known - good Fuel Level Sensor and check for proper operation. If the problem is corrected, replace Fuel Level Sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
