Monitor SCANTOOL Data

Ignition "OFF"
Connect Scantool and Engine "ON"
Turn the steering wheel and monitor the power steering signal on Current Data.
Specification: While not turning steering wheel: "OFF"

While turning steering wheel slowly: "ON"

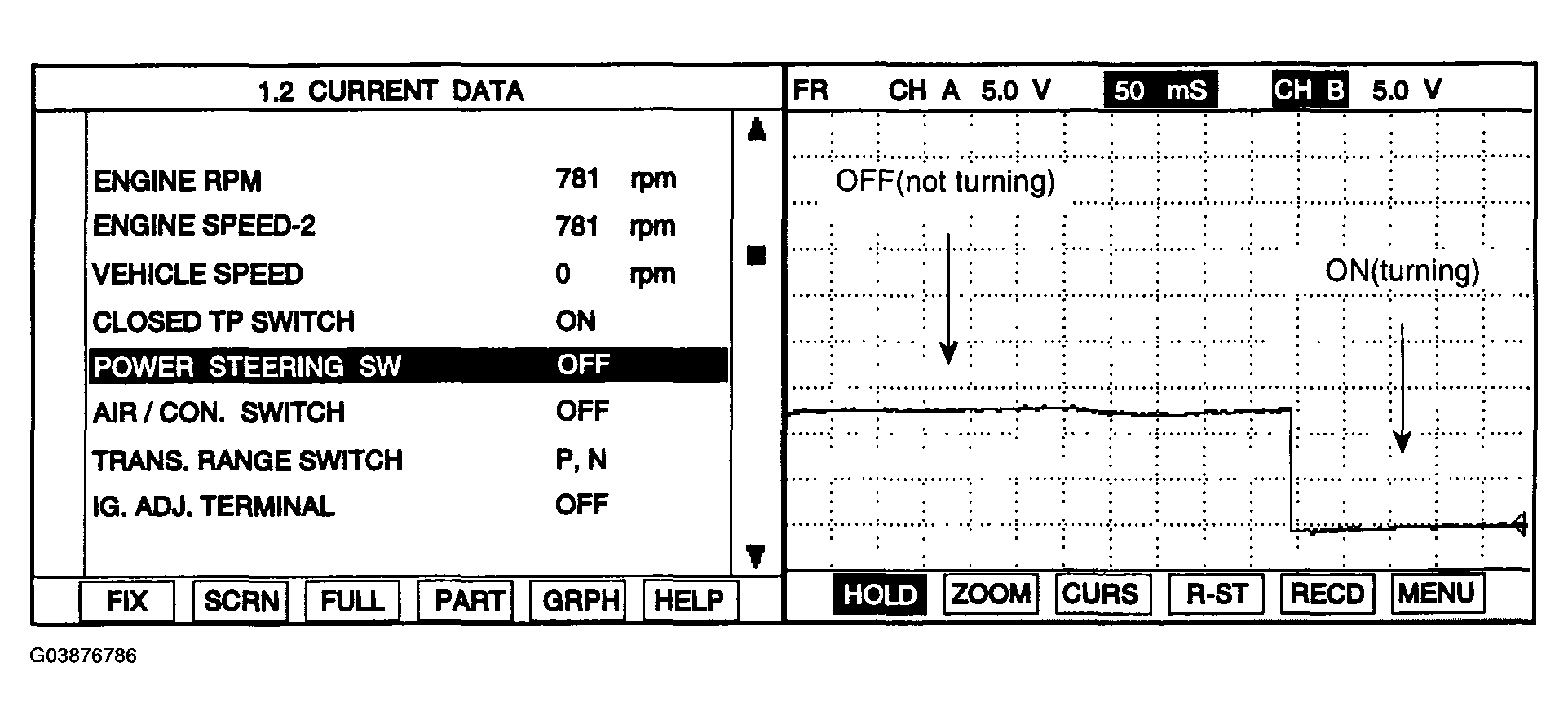

Fig 1: Monitor Scantool Data
Courtesy of KIA MOTORS AMERICA, INC.
Is the power steering switch operating correctly?
Yes
- Fault is intermittent caused by poor contact in Fuel Level Sensor's and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/Harness Inspection" procedure.
