Output Feature

WARNING: This page is about a different car, the 2004 Kia Amanti. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 1. APS #2 (MAIN) for ECU Gradient: 100% / 100°. 2. Idle Switch operating point. 3. Closed Throttle.

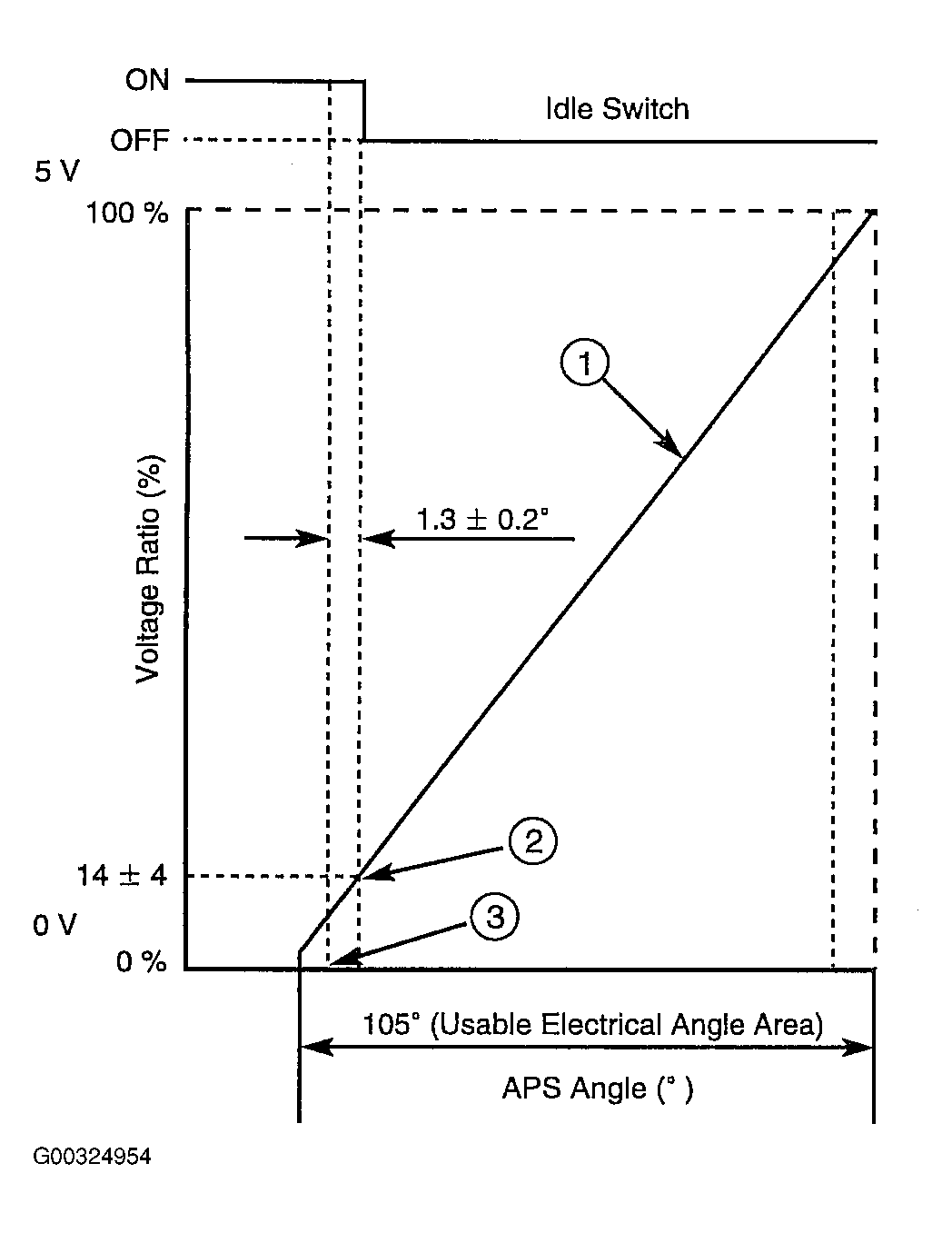

Fig 1: Illustrating APS Angle-To-Voltage Ratio Graph

Courtesy of KIA MOTORS AMERICA, INC.
