Sensor Inspection
WARNING: This page is about a different car, the 2004 Kia Amanti. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the TPS connector.

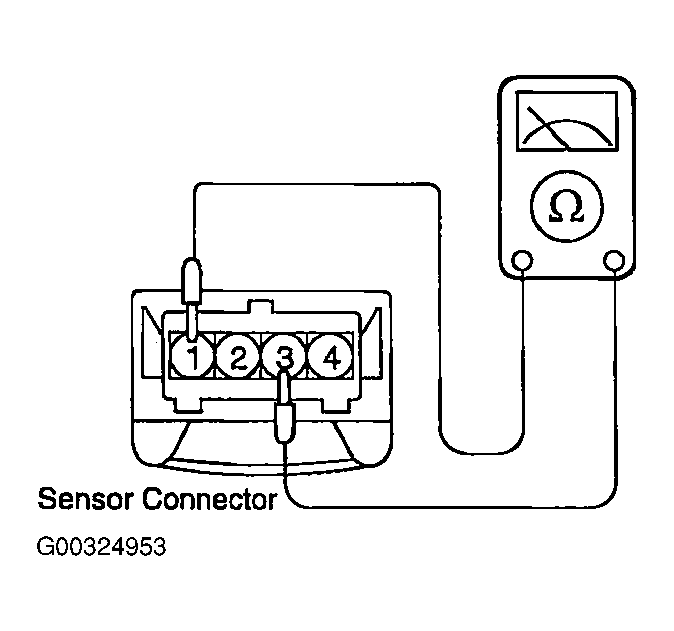

- Using Ohmmeter, measure resistance between terminal 3 (GND) and 1 (Sensor supply).
Set Value: 1.5 ~ 3.5 kΩ
- Measure resistance between terminal 3 (GND) and 2 (Sensor signal output).
- Inspect the sensor signal while rotating the throttle valve from C.T. to W.O.T. At this time the sensor signal varies proportional to throttle angle.
- Replace the TPS if the sensor signal is out of range and is not directly proportional to throttle angle.
Tightening Torque: 1.5 ~ 2.5 Nm (0.15 ~ 0.25 kg.m, 1.1 ~ 1.8 lb.ft)
