Automatic Transaxle: Differential: Components

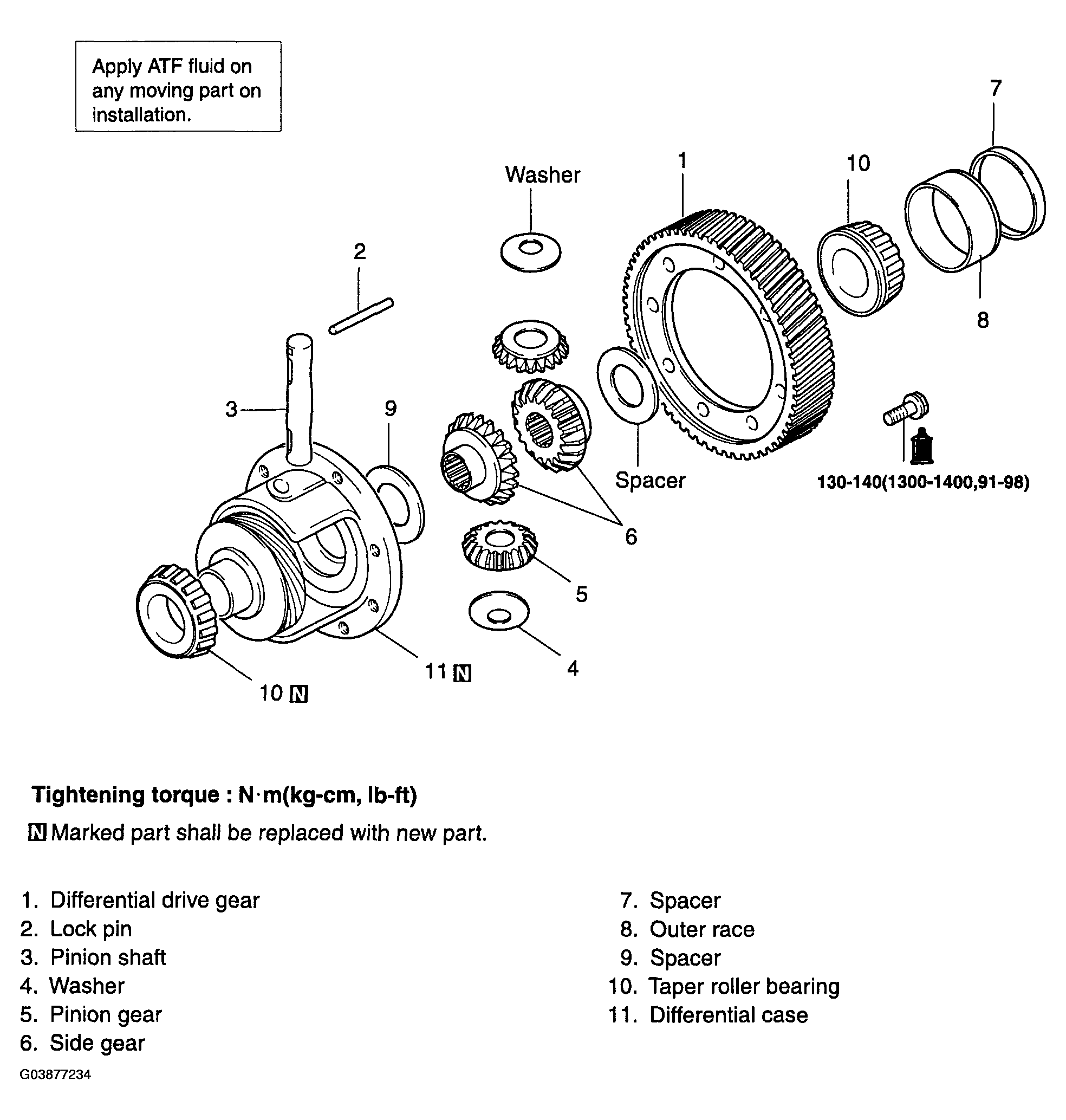

Fig 1: Exploded View Of Differential Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
