Control Cable Adjustment

  1. Move the shift lever to position "N".
  2. Release the adjusting nut at the connection between the transaxle control cable and the manual control lever and separate them.

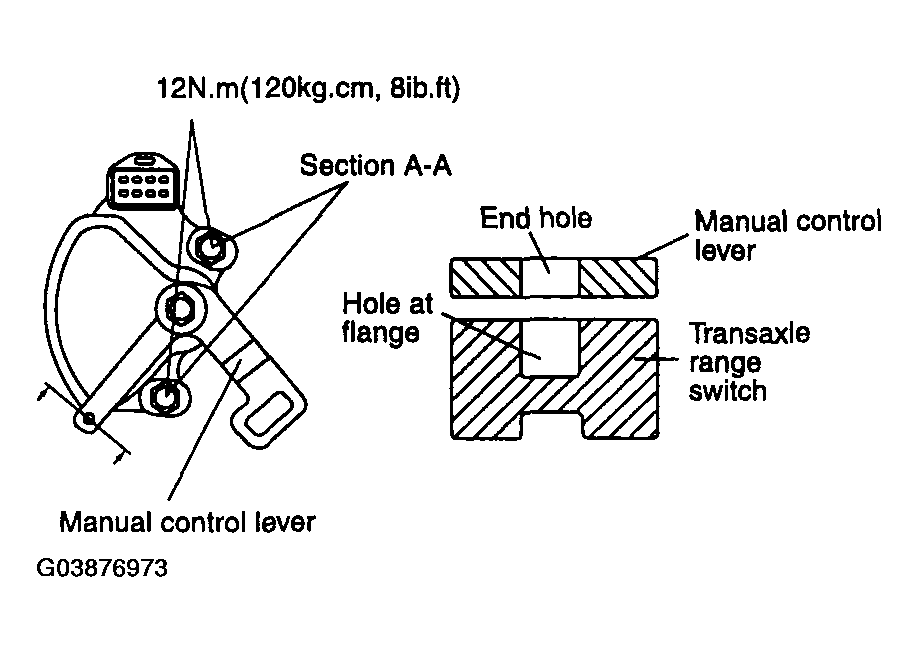

    Fig 1: Moving Shift Lever To Position "N"
    G03876973Courtesy of KIA MOTORS AMERICA, INC.
  3. Move the manual control lever to position "N".
  4. Insert +/-0.197in(+/-5mm) pin into holes +/-0.197in(+/-5mm) transaxle range switch and the manual control lever. Adjust the transaxle range switch and manual control lever at position "N" correctly.
    CAUTION: If you do not insert +/-0.197in(+/-5mm) pin, position "N" may move when tightening the adjusting nut.
    Fig 2: Adjusting Transaxle Range Switch And Manual Control Lever At Position "N" Correctly
    G03876974Courtesy of KIA MOTORS AMERICA, INC.
