Low Reverse Brake: Components

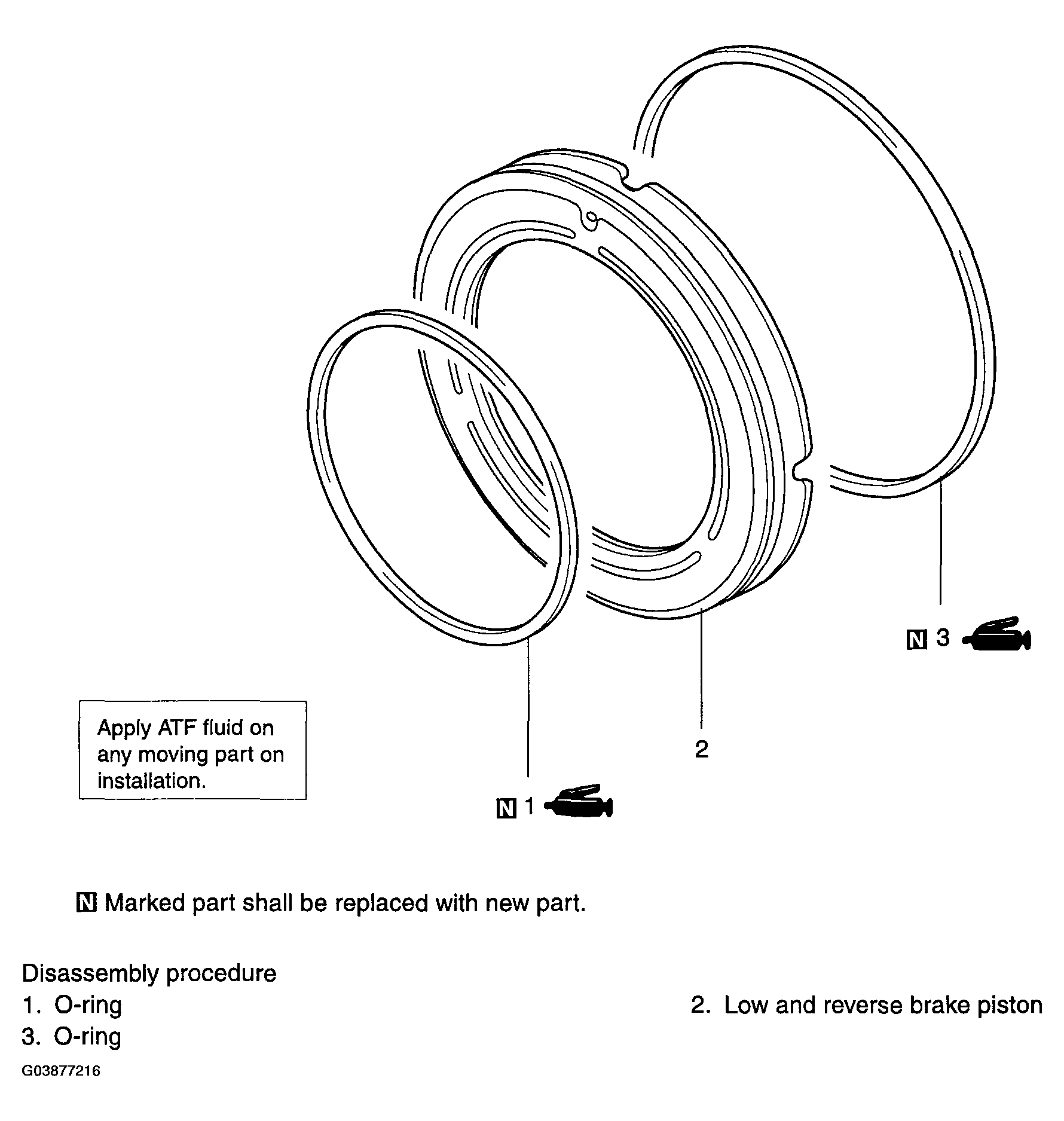

Fig 1: Locating Low Reverse Brake Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
