Planetary Gear Set: Components

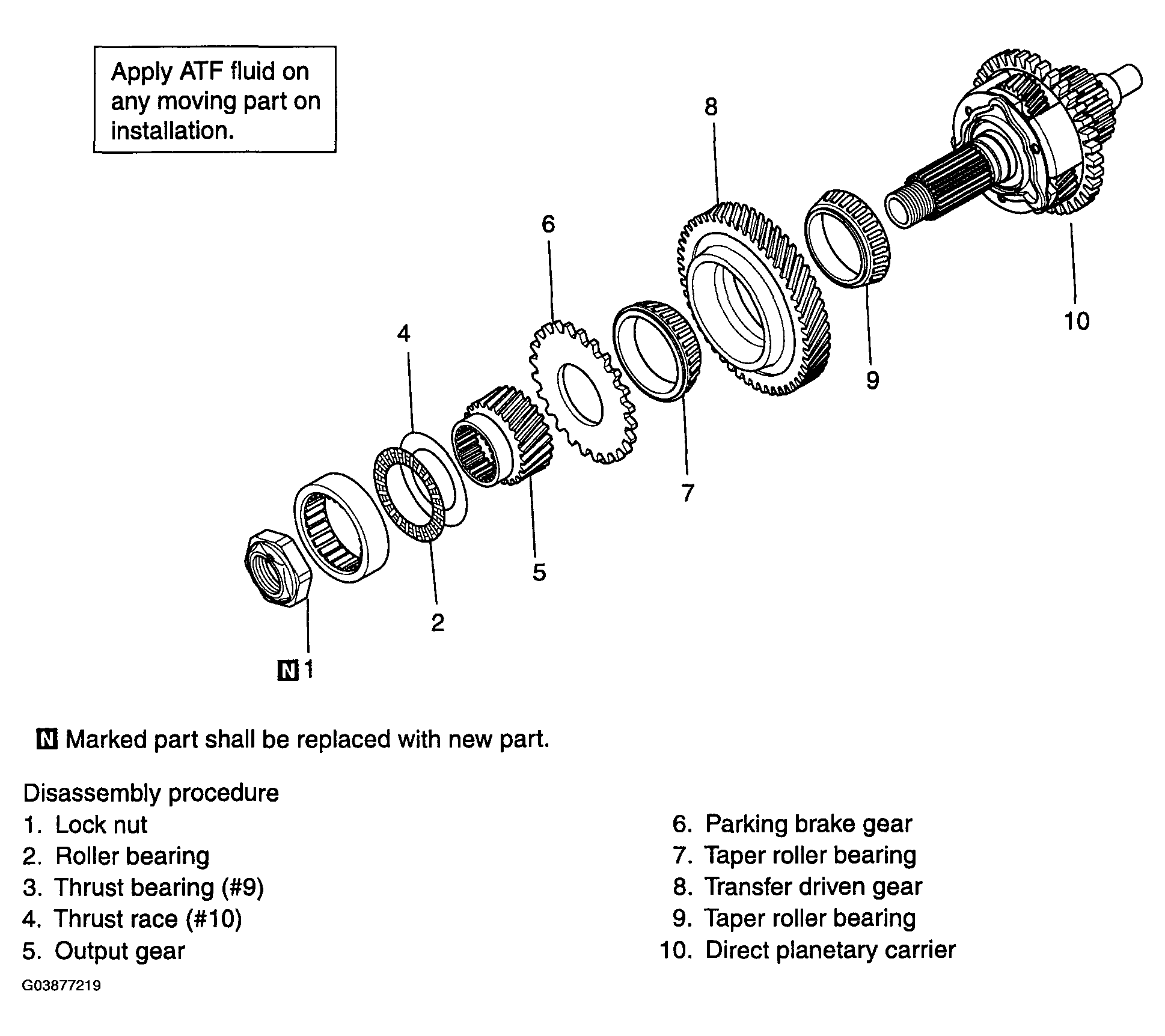

Fig 1: Exploded View Of Planetary Gear Set Components

G03877219

Courtesy of KIA MOTORS AMERICA, INC.
