Second Brake: Components

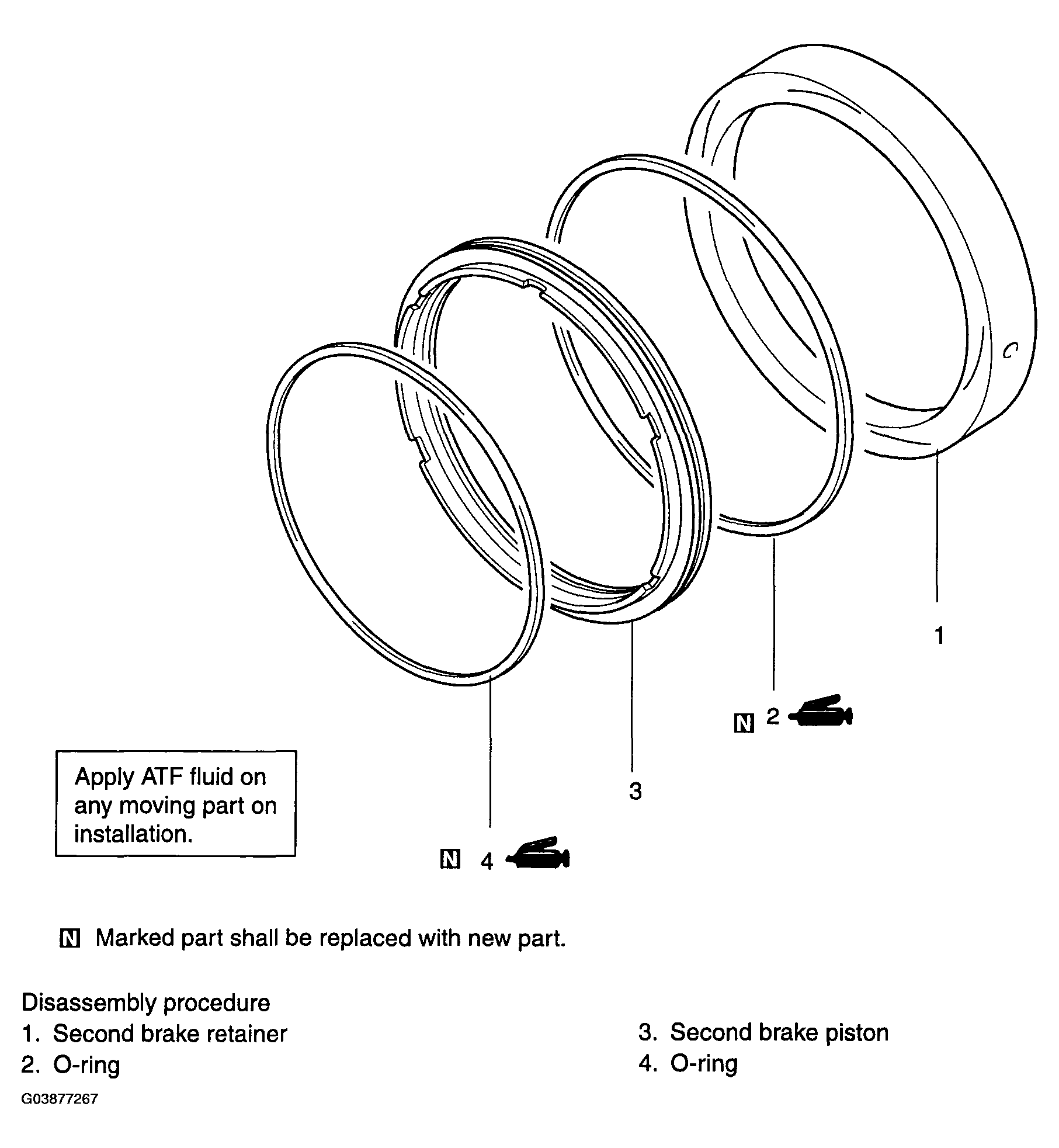

Fig 1: Exploded View Of Second Brake Components

G03877267

Courtesy of KIA MOTORS AMERICA, INC.
