Automatic Transaxle: Troubleshooting: Notes

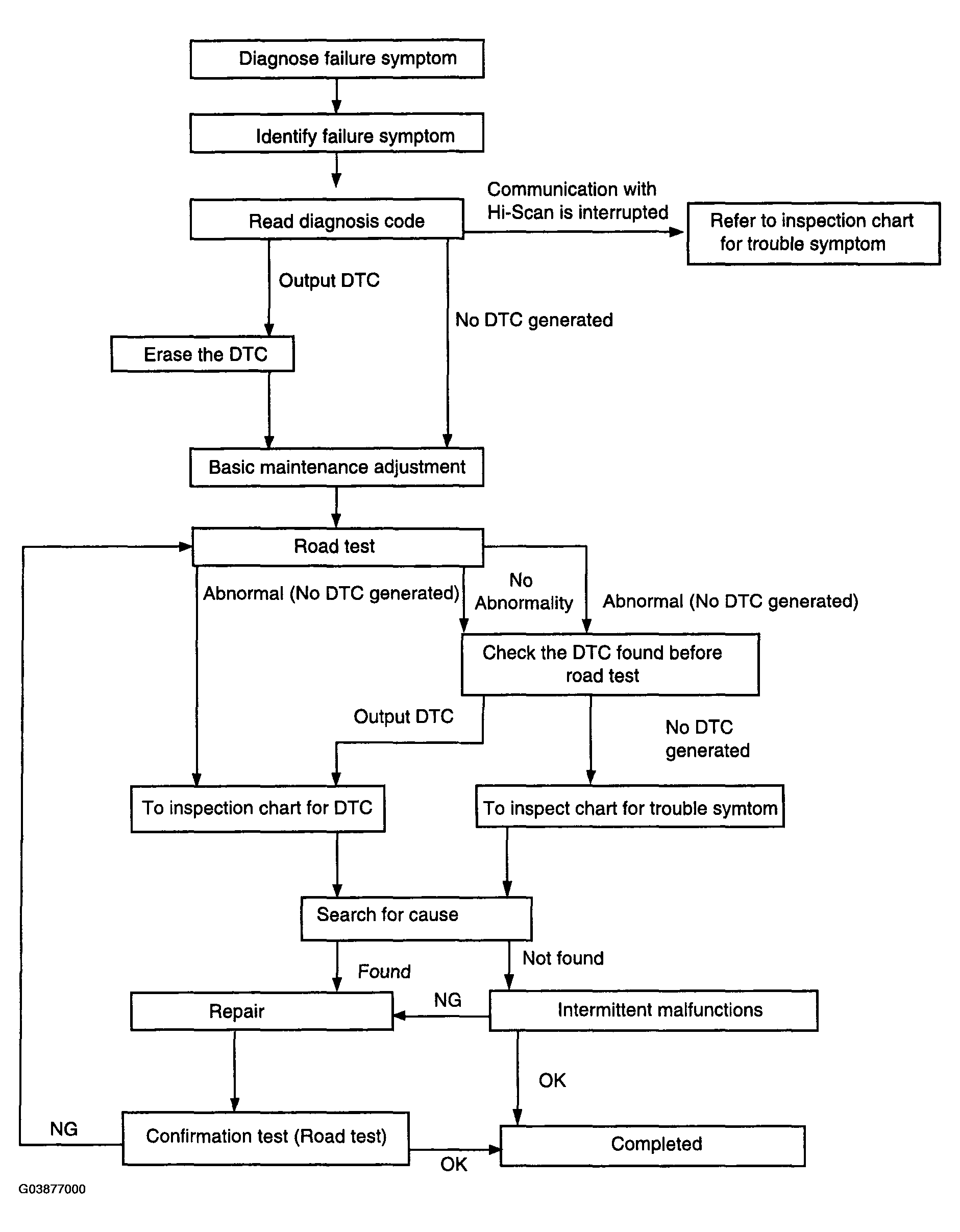

Fig 1: Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
