Valve Body: Components(A): Components(B)

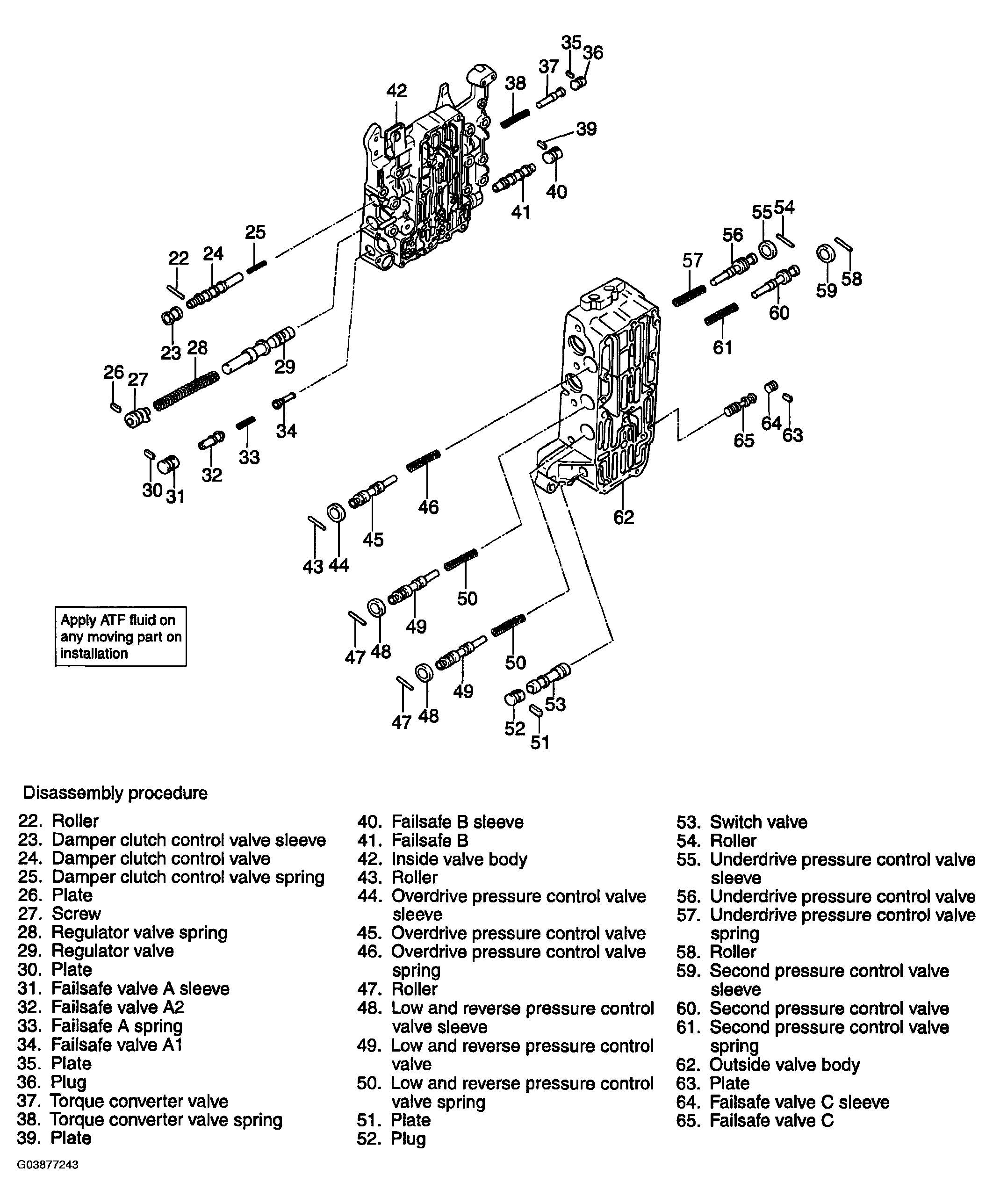

Fig 1: Exploded View Of Valve Body Components(B)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
