Low Tire Pressure Indicator: Service and Repair

SENSOR INITIATING PROCEDURE

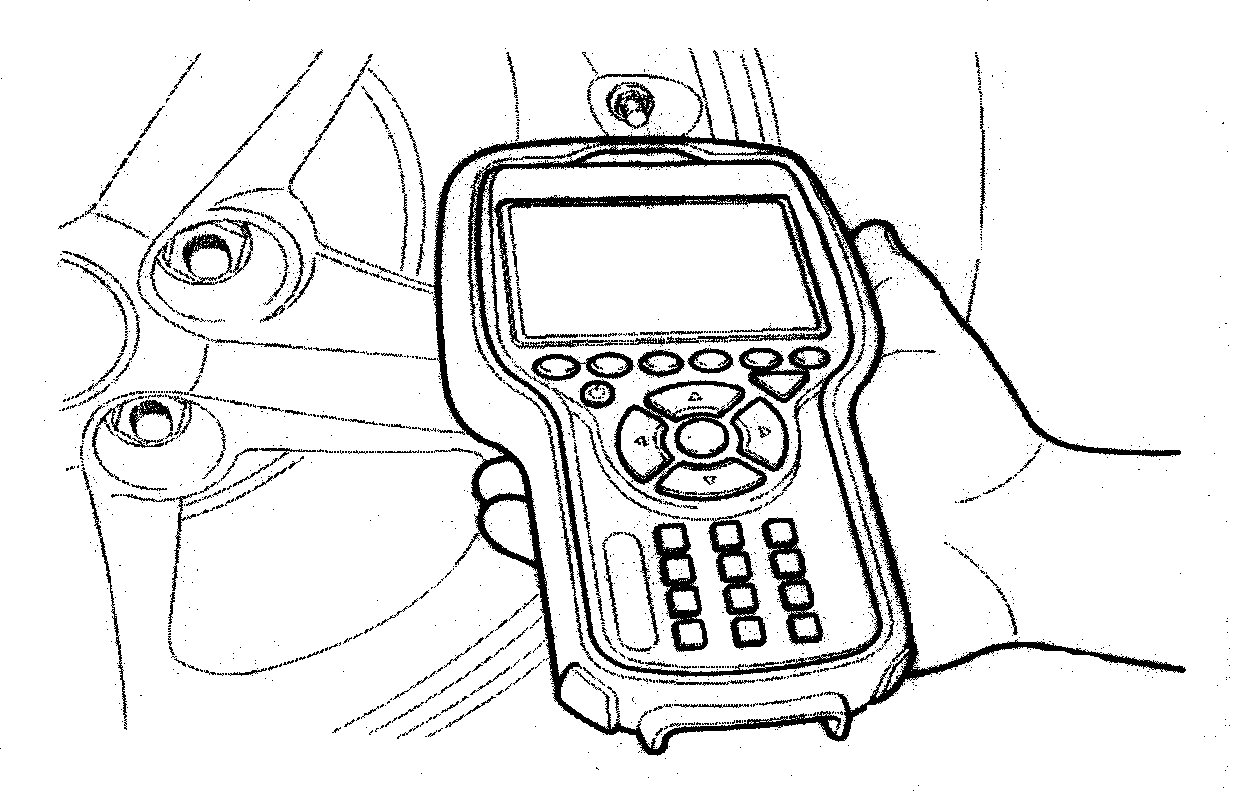

1. Read the four sensor's ids starting with sensor 1 (1 normally front left, 2 front right, 3 rear left, 4 rear right).





2. Connect "TPMS exciter" to the diagnostic connector.








3. Register the four sensor's ids to the receiver.

4. Disconnect diagnostic link.

5. Cycle Ignition, wait 4 minutes and check that Normal Receiver State is now indicated.
