Difficult To Refuel/Overflowing Or Spit-Back While Refueling

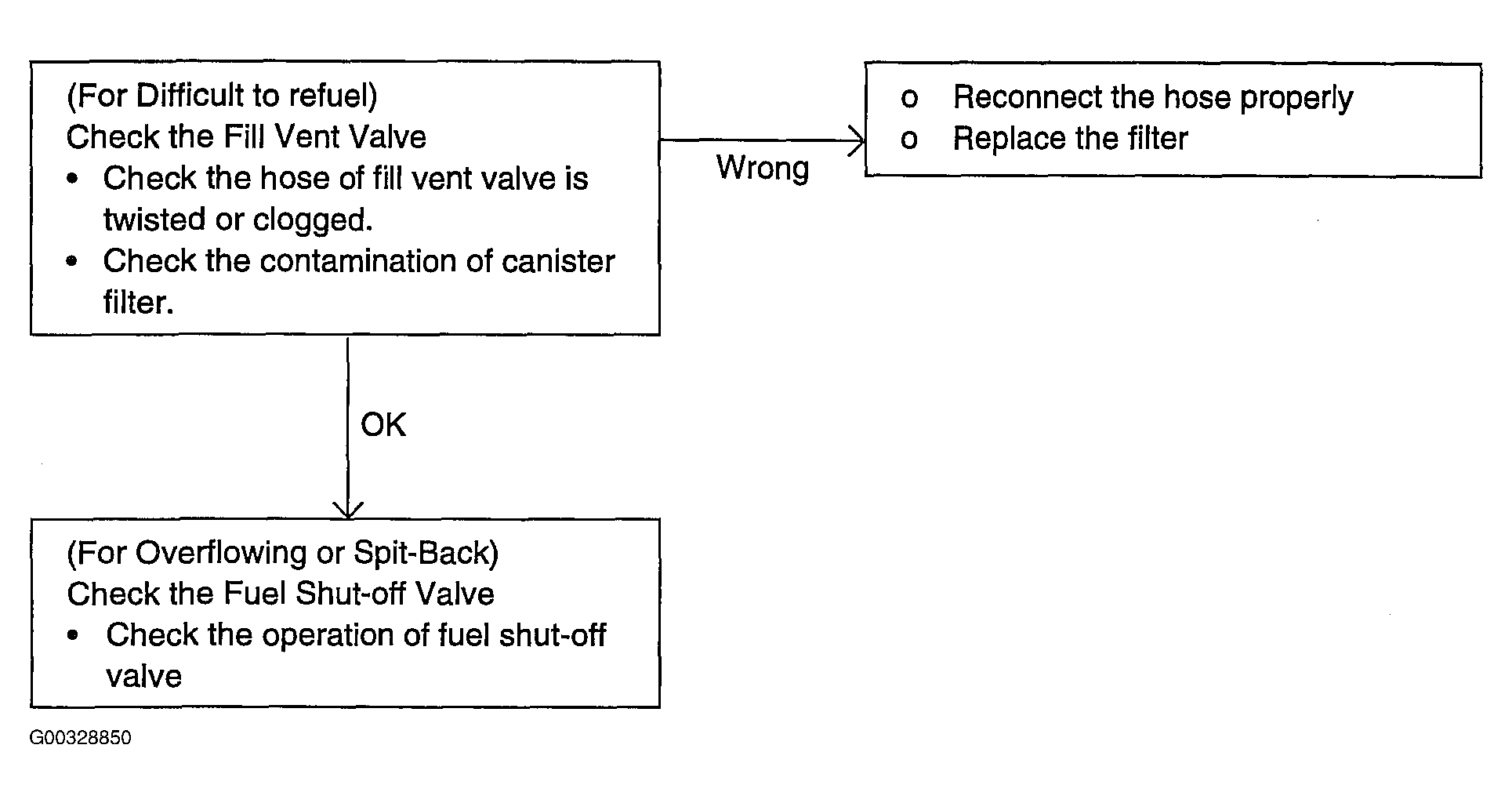

Fig 1: Identifying Difficult To Refuel/Overflowing Or Spit-Back While Refueling Symptom Diagnosis Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The proper operating condition of fuel shut-off valve is at the nominal volume of fuel (app. 65 liter).
