Connector (C)

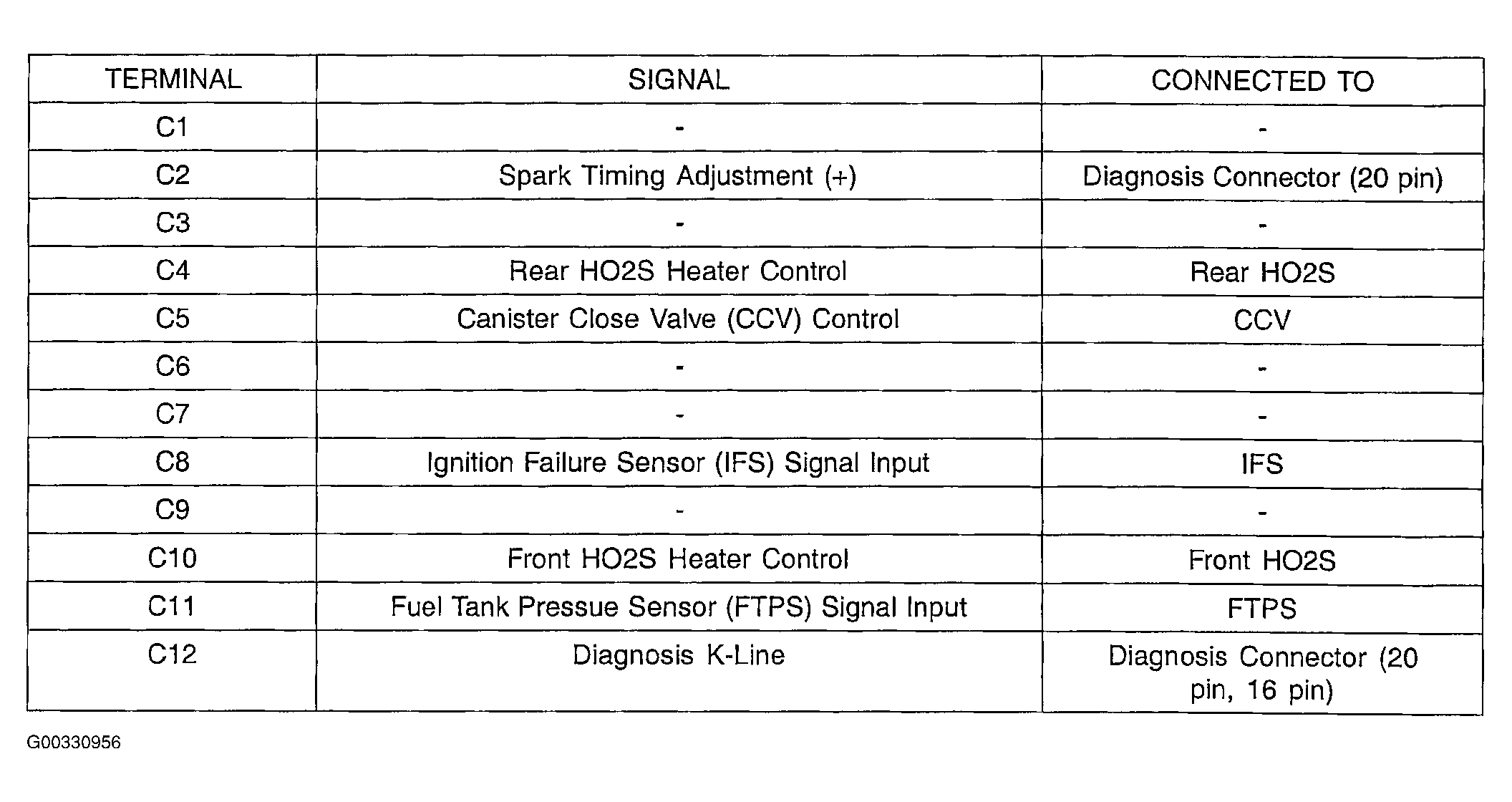

Fig 1: Identifying Terminal Layout Of Connector "C" - Vehicles Without Transaxle Control Unit (TCU) (Vehicles With Manual Transaxle)
G00330956Courtesy of KIA MOTORS AMERICA, INC.
