Without Scan Tool

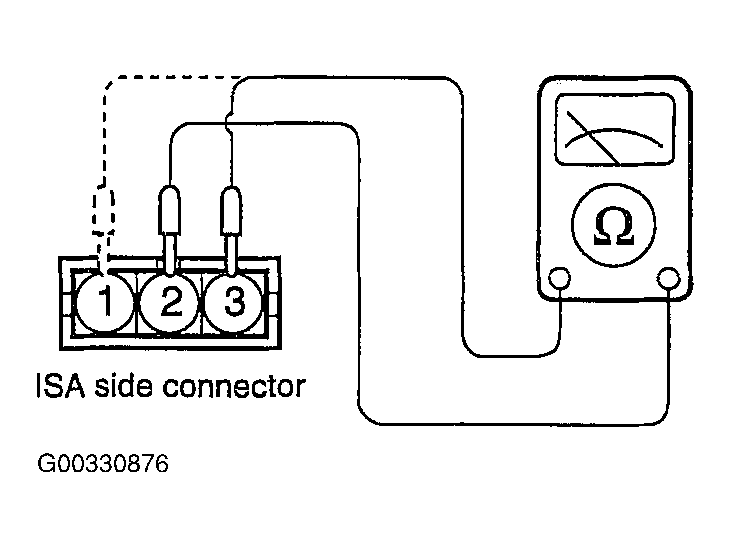

Fig 1: Checking Idle Speed Control Actuator (ISA) Without Scan Tool

Courtesy of KIA MOTORS AMERICA, INC.

Standard value:

1. Terminal 3 - 2 (Open): 14.5-16.5 Ω
2. Terminal 1 - 2 (Closing): 16.6 - 18.6 Ω (at 20°C (68°F))
