Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.4L (M/T)
>>
MFI Control System
>>
Ignition Failure Sensor (Ifs)
>>
Harness Inspection Procedures (Ifs)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Harness Inspection Procedures (Ifs)

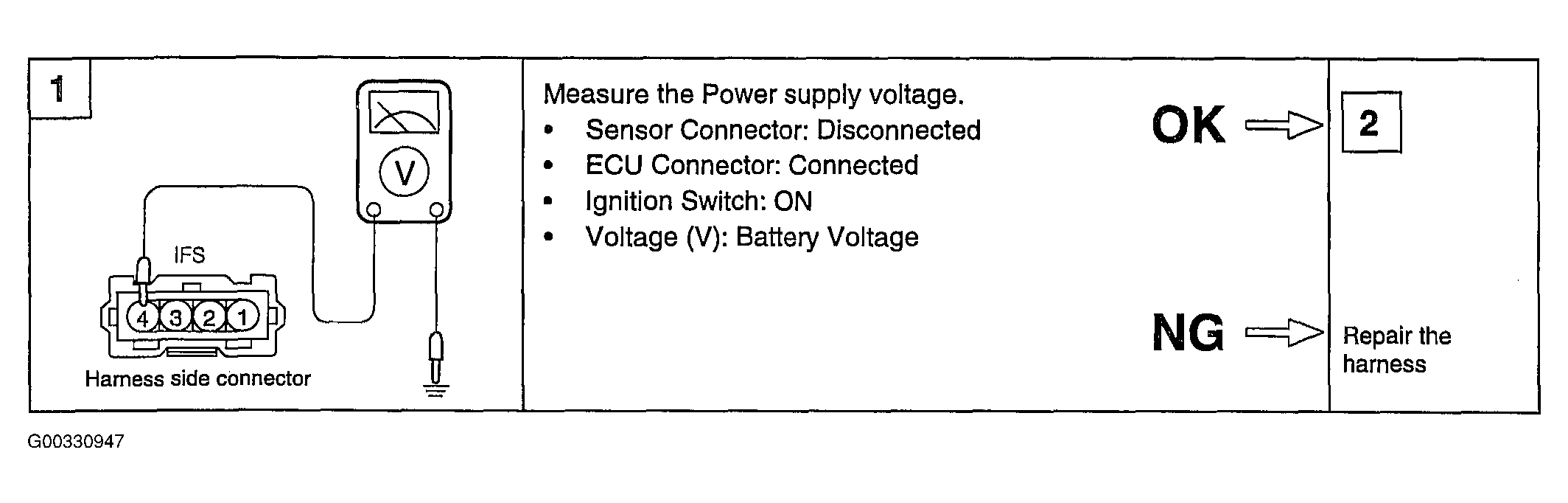

Fig 1: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

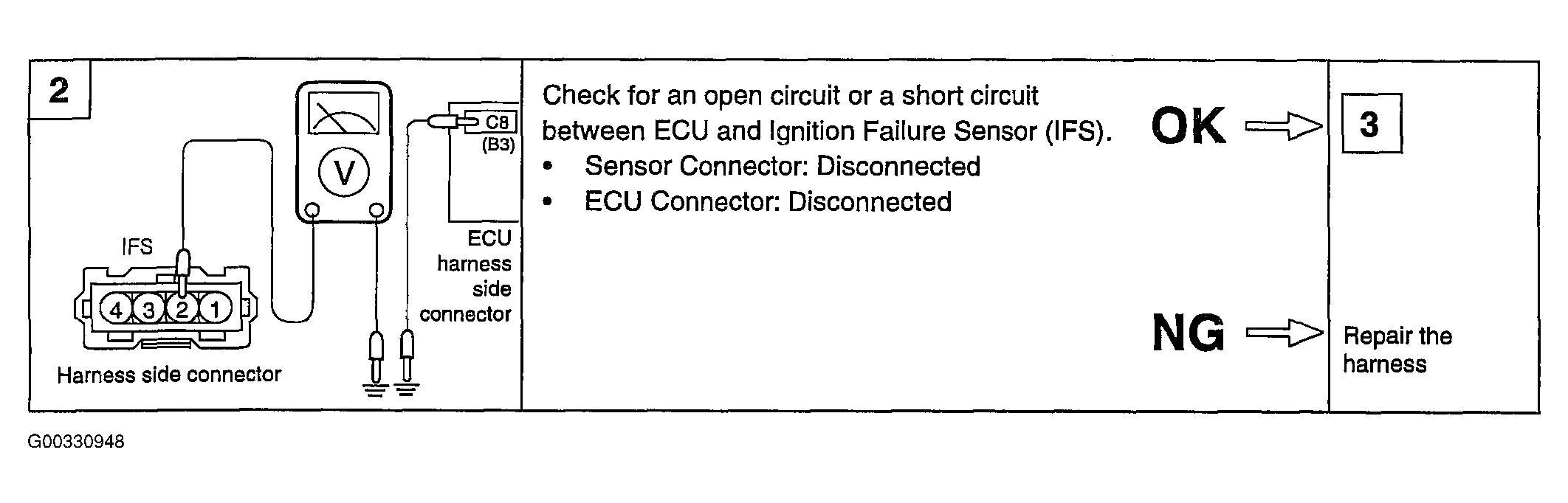

Fig 2: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

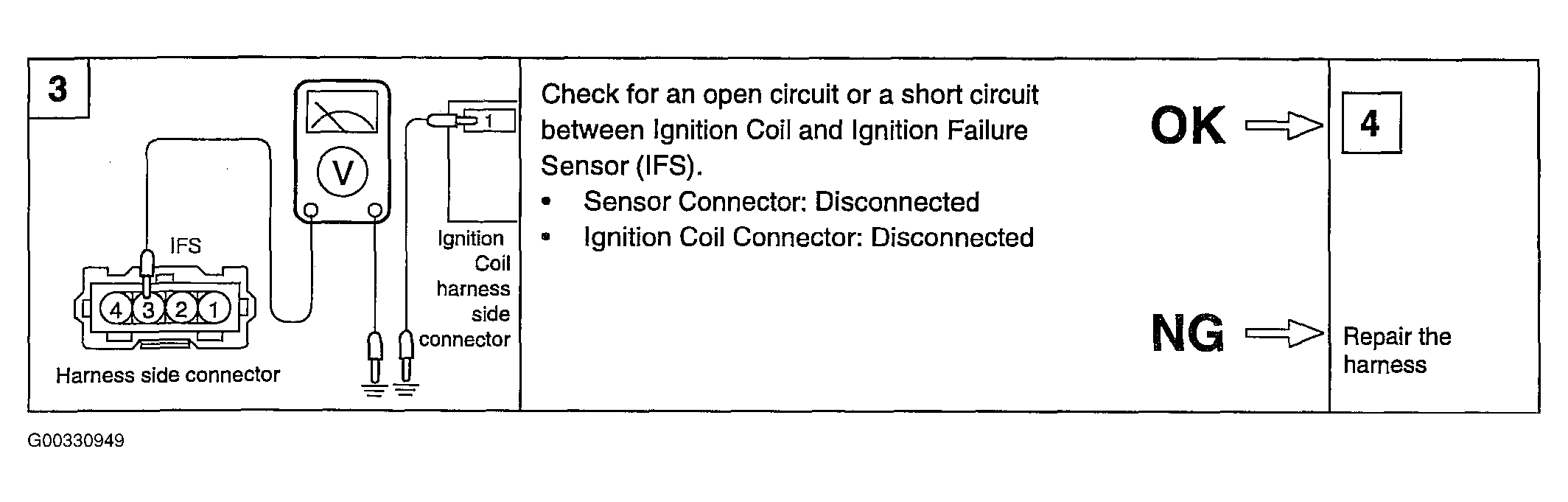

Fig 3: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

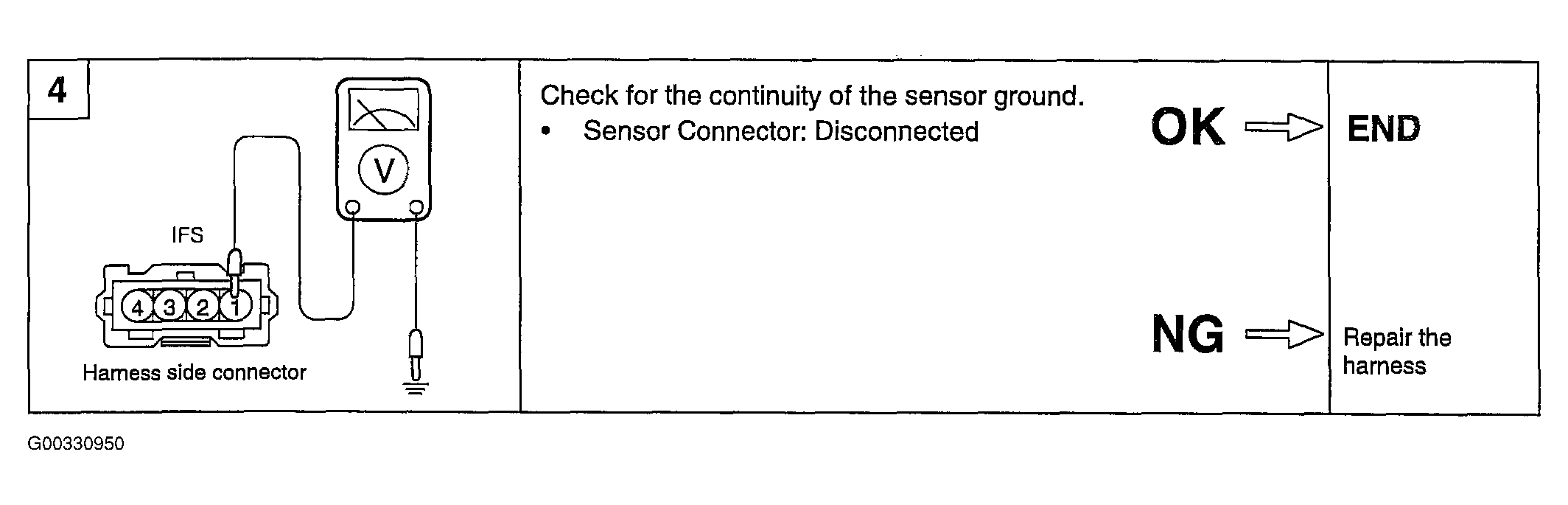

Fig 4: Identifying Ignition Failure Sensor (IFS) Harness Inspection Procedures (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
