2005
>>
Optima LX, 2.4 6, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.4L (M/T)
>>
MFI Control System
>>
Throttle Position Sensor (TPS)
>>
Harness Inspection Procedures (TPS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Harness Inspection Procedures (TPS)

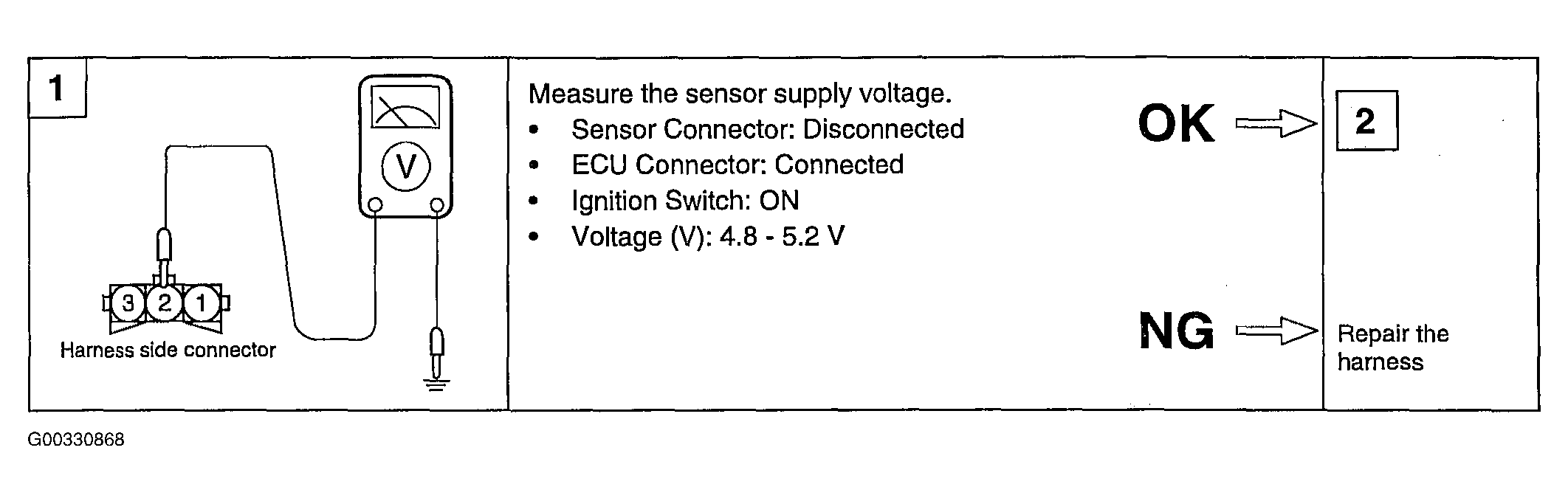

Fig 1: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

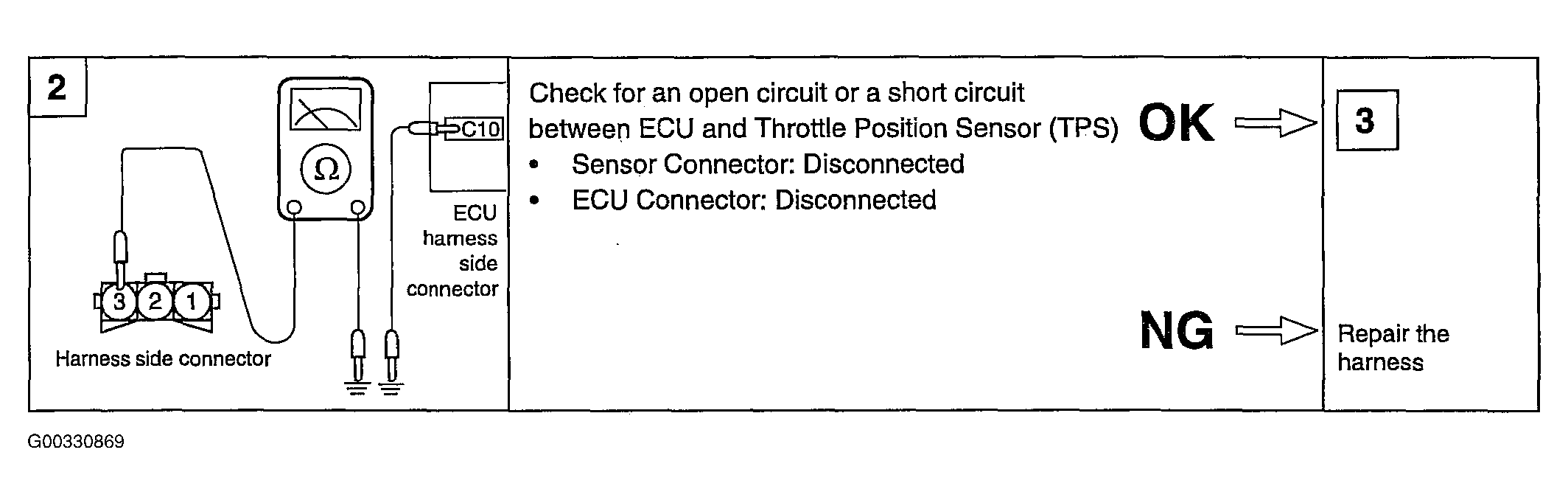

Fig 2: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

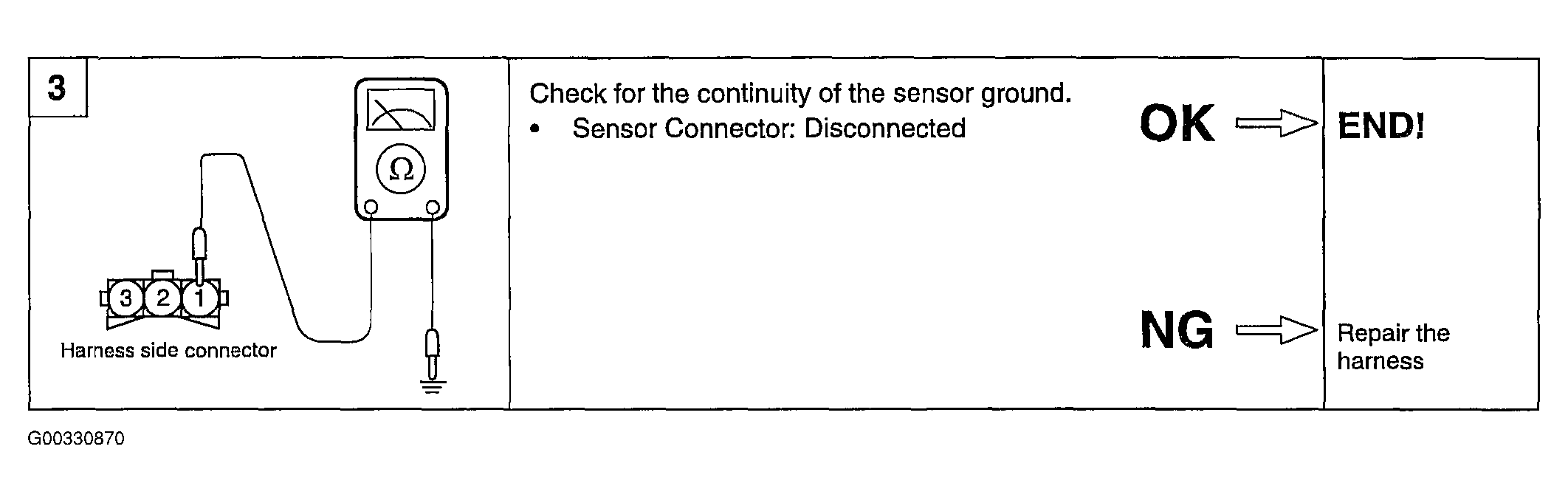

Fig 3: Identifying Throttle Position Sensor (TPS) Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
