Troubleshooting Guide

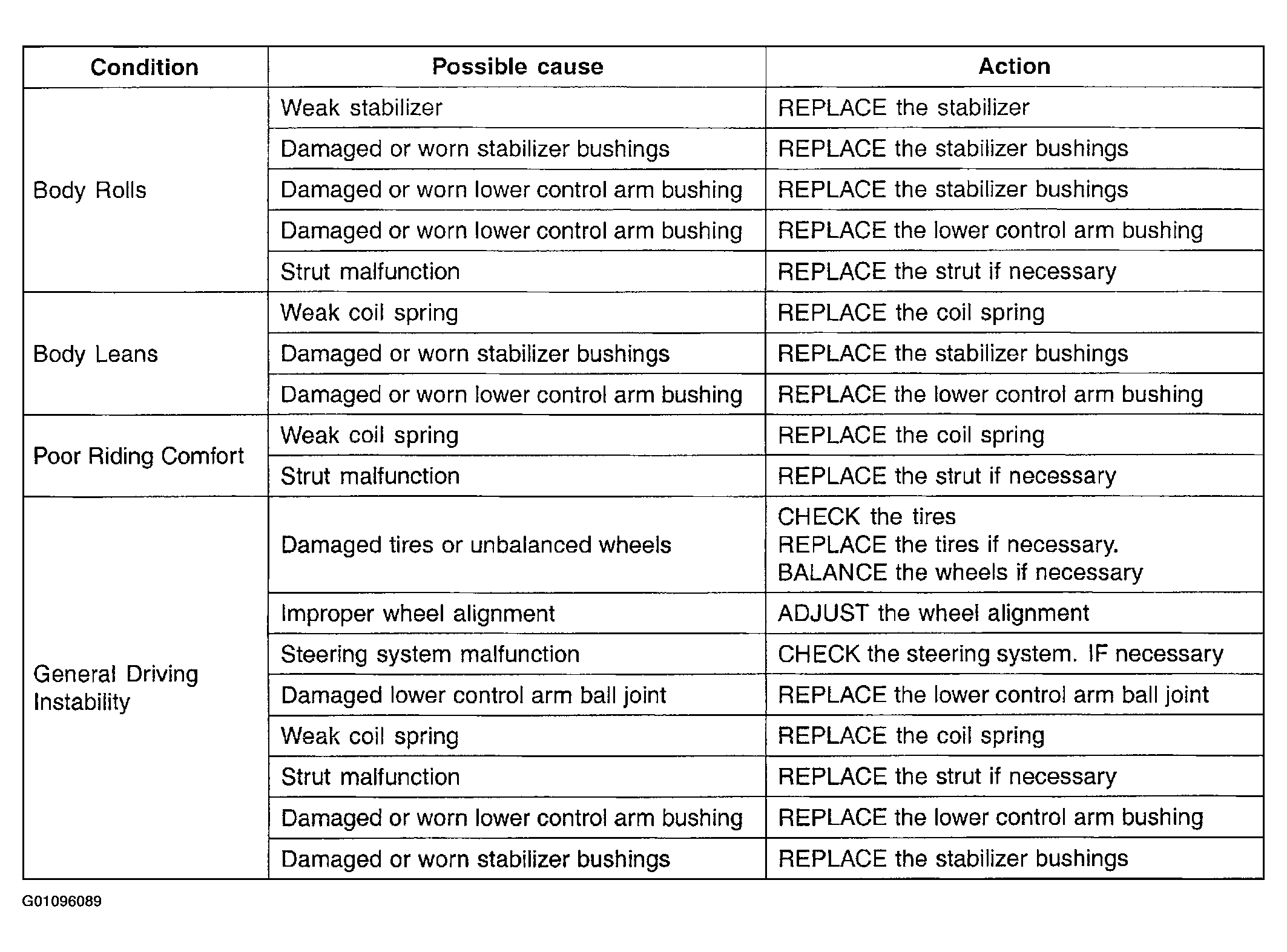

Fig 1: Front & Rear Suspension System Troubleshooting Guide (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

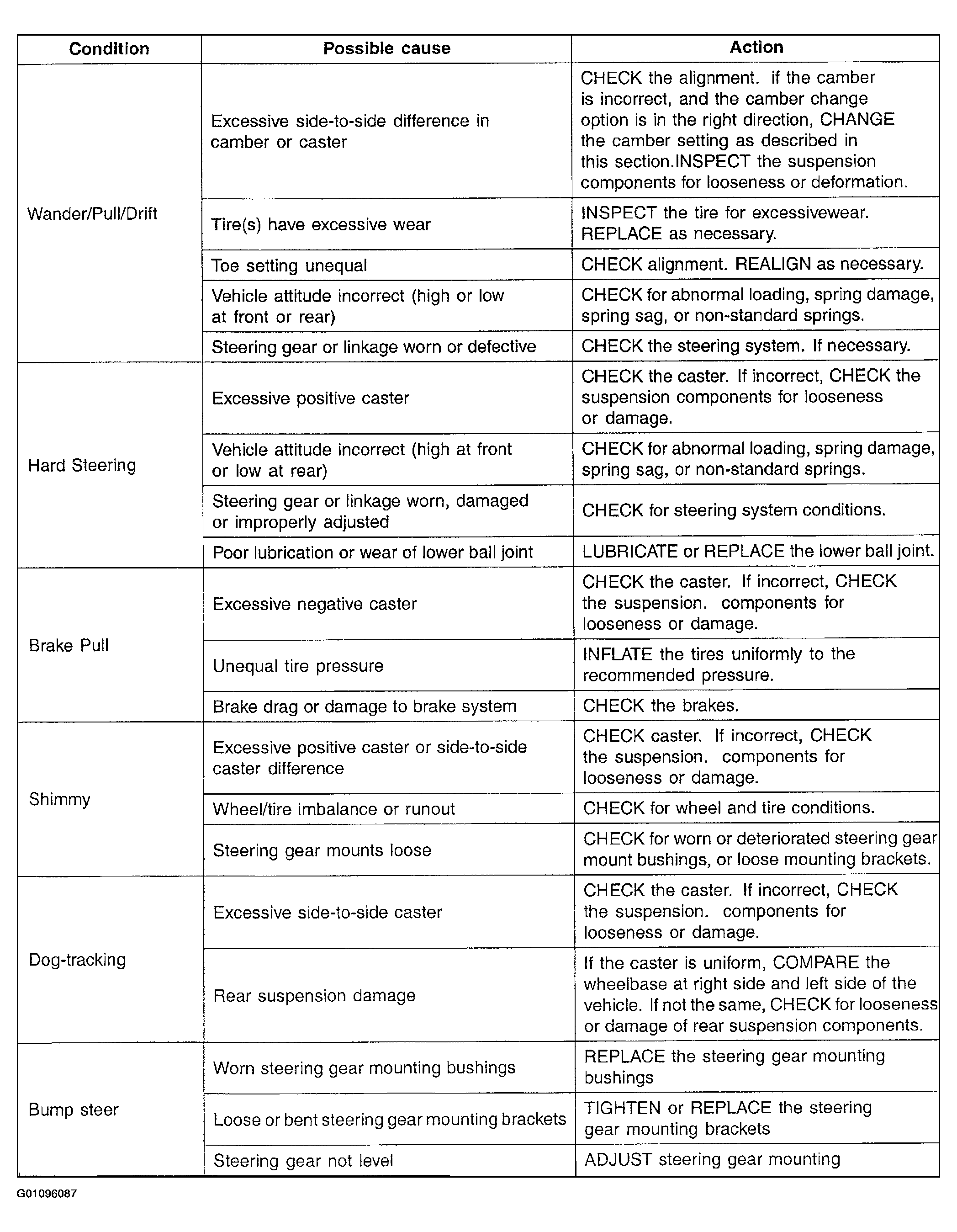

Fig 2: Front & Rear Suspension System Troubleshooting Guide (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

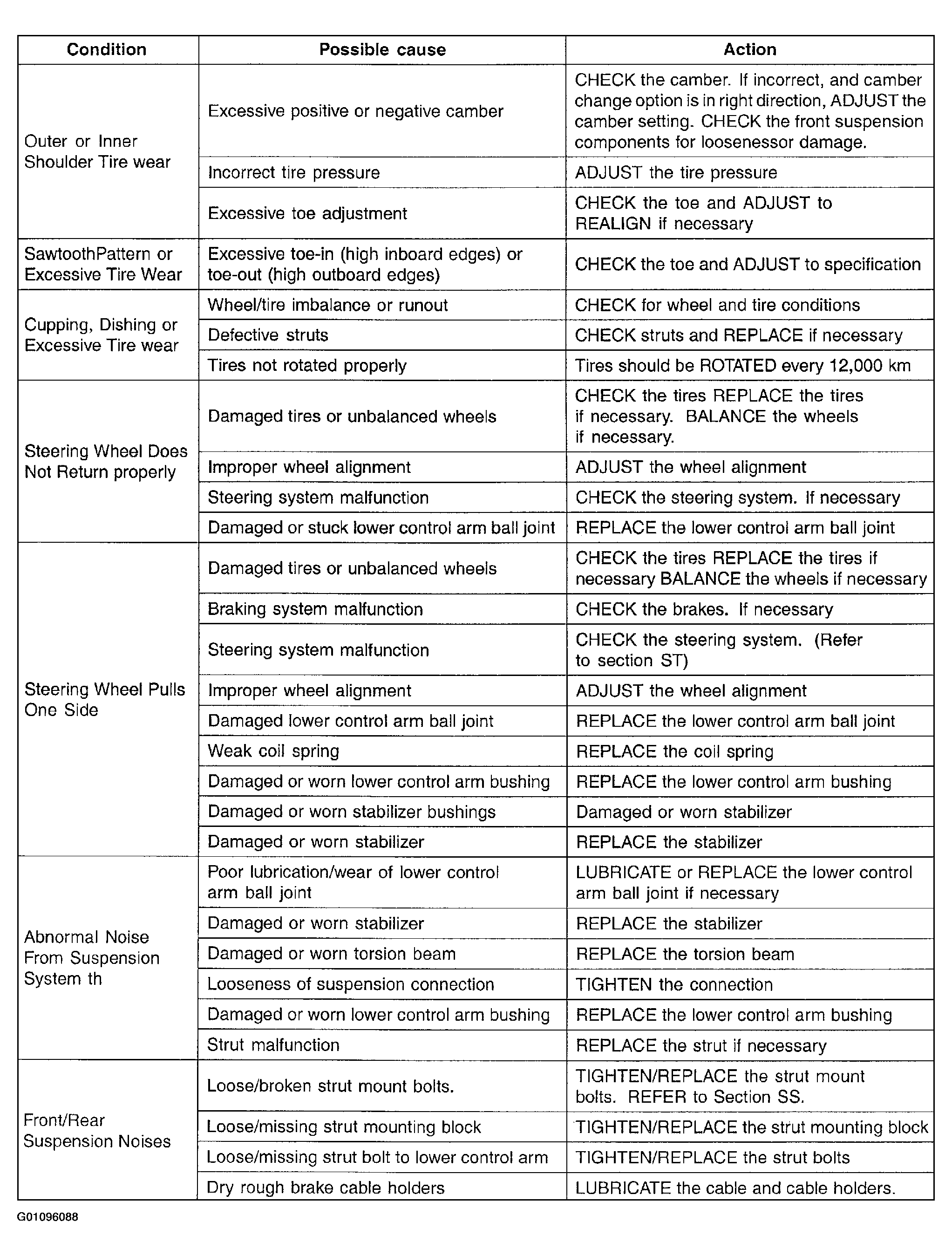

Fig 3: Front & Rear Suspension System Troubleshooting Guide (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
