Control Unit Outside Circuit Diagram

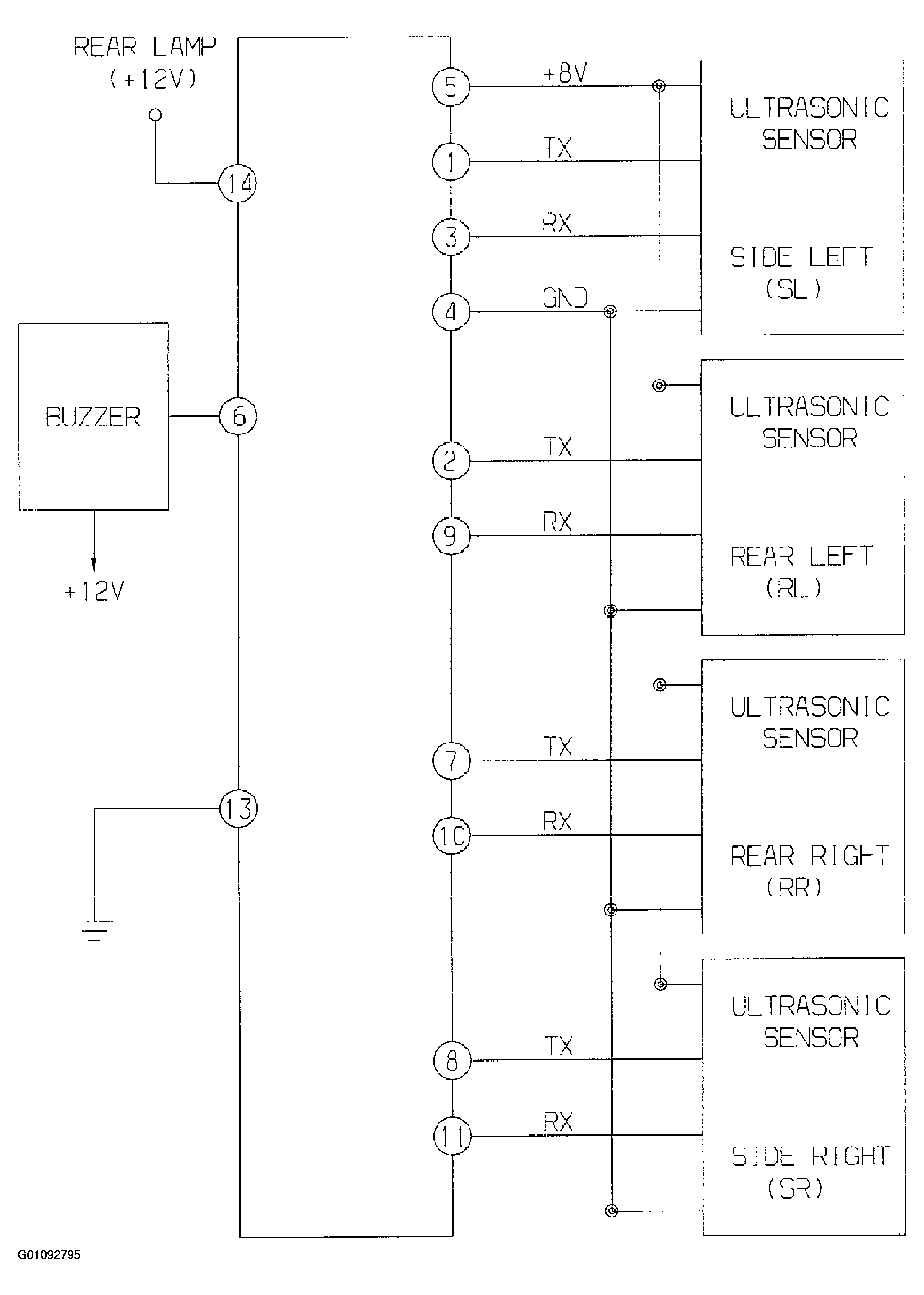

Fig 1: Identifying Back Warning System Control Unit Outside Circuit Diagram
G01092795Courtesy of KIA MOTORS AMERICA, INC.
