Timing Belt: Components

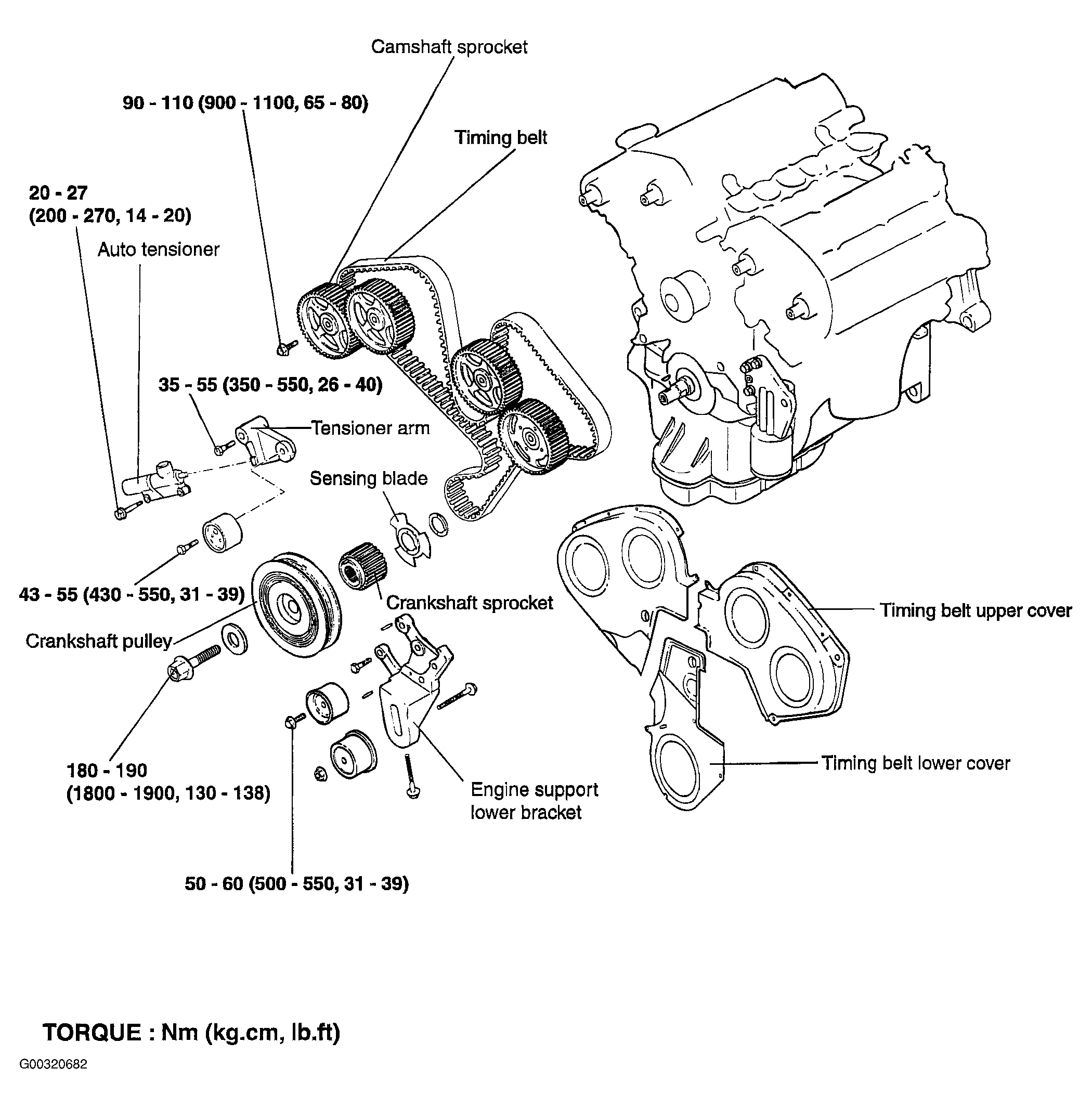

Fig 1: Timing Belt Components (1 Of 2)
G00320682Courtesy of KIA MOTORS AMERICA, INC.

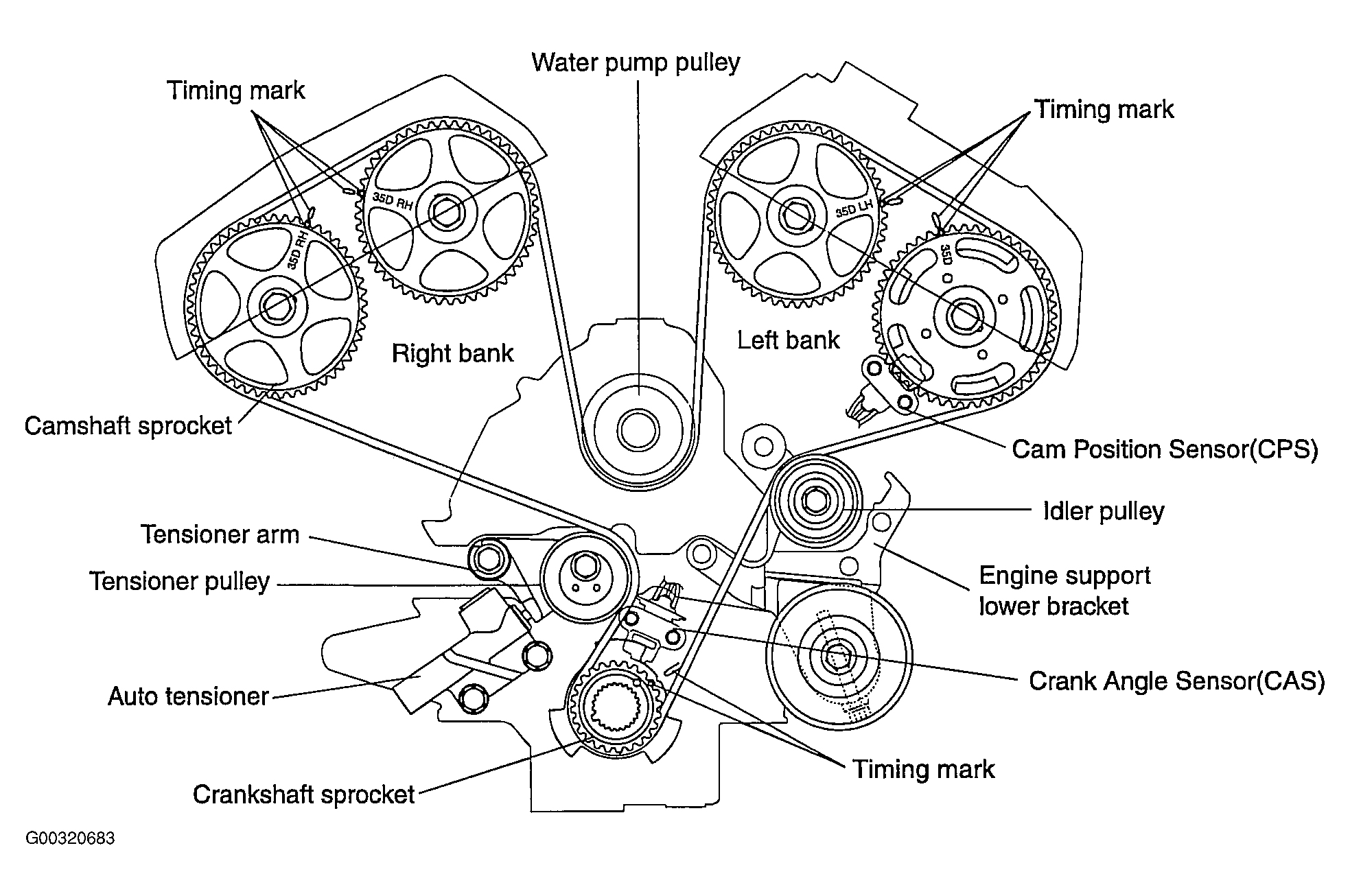

Fig 2: Timing Belt Components (2 Of 2)
G00320683Courtesy of KIA MOTORS AMERICA, INC.
