Components And Components Location: Components

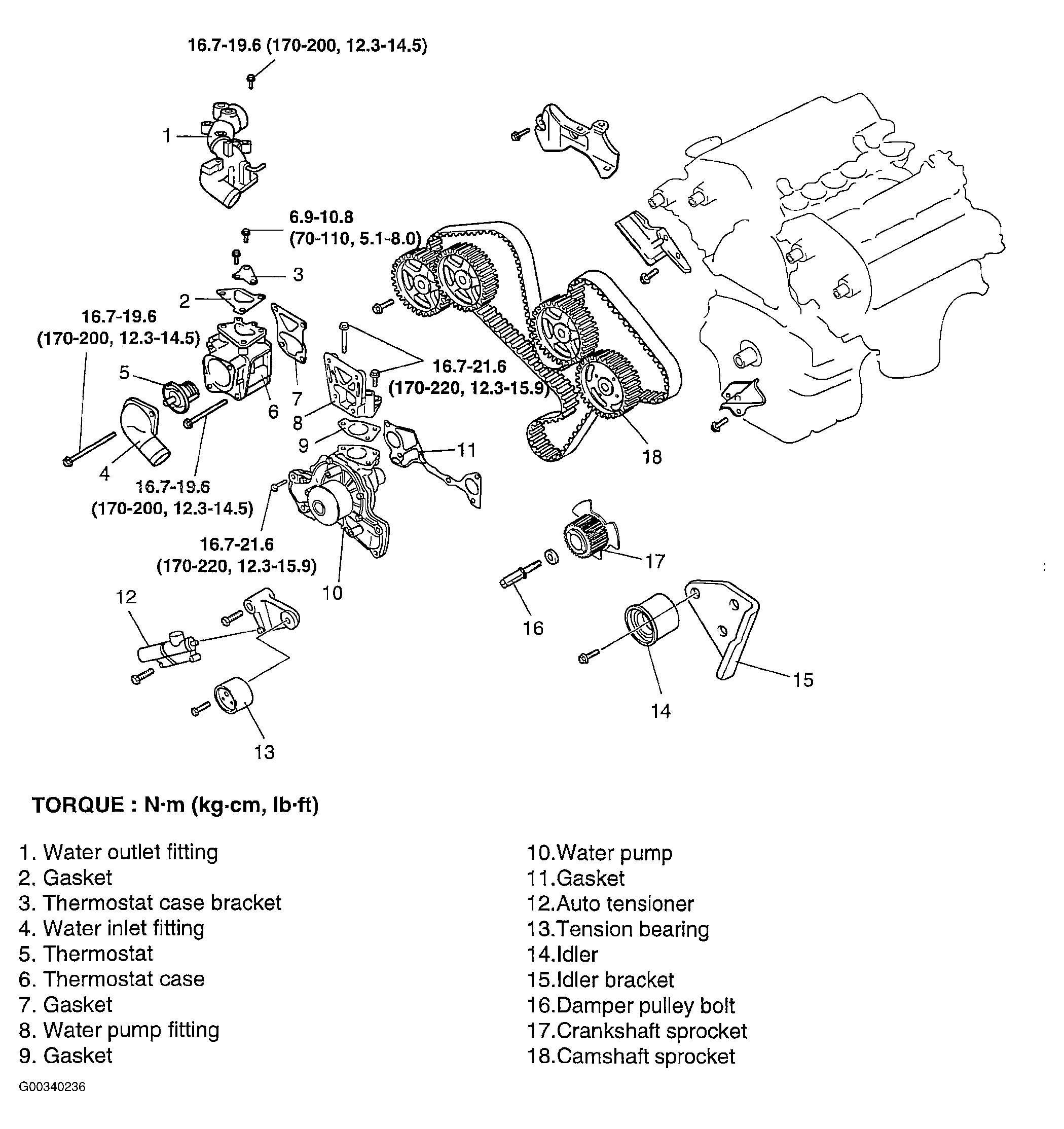

Fig 1: Water Pump Replacement Components With Torque Specifications
G00340236Courtesy of KIA MOTORS AMERICA, INC.
