Components And Components Location: Components

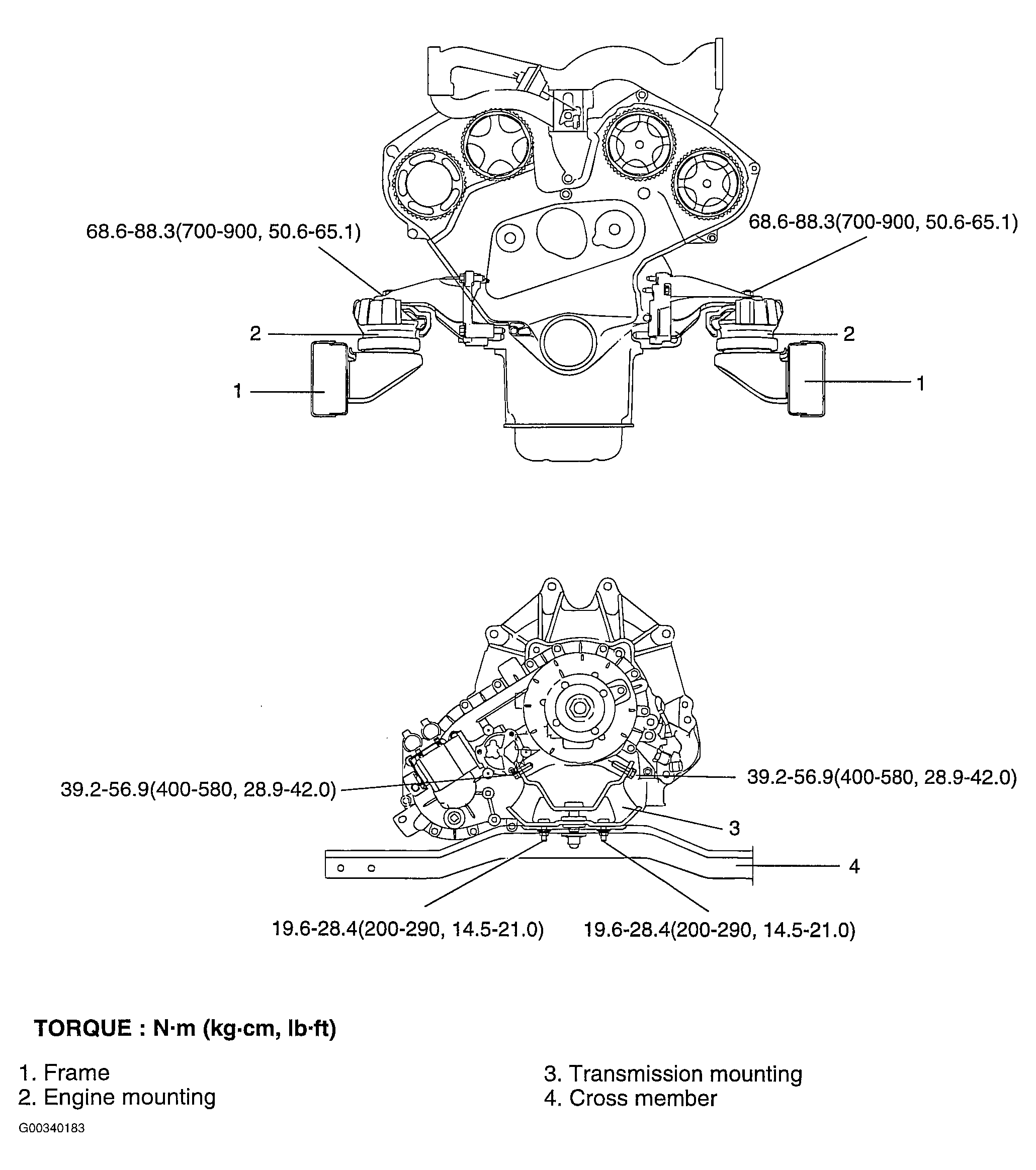

Fig 1: Engine Mounts With Torque Specifications
G00340183Courtesy of KIA MOTORS AMERICA, INC.
