Cylinder Head Assembly: Valve: Components

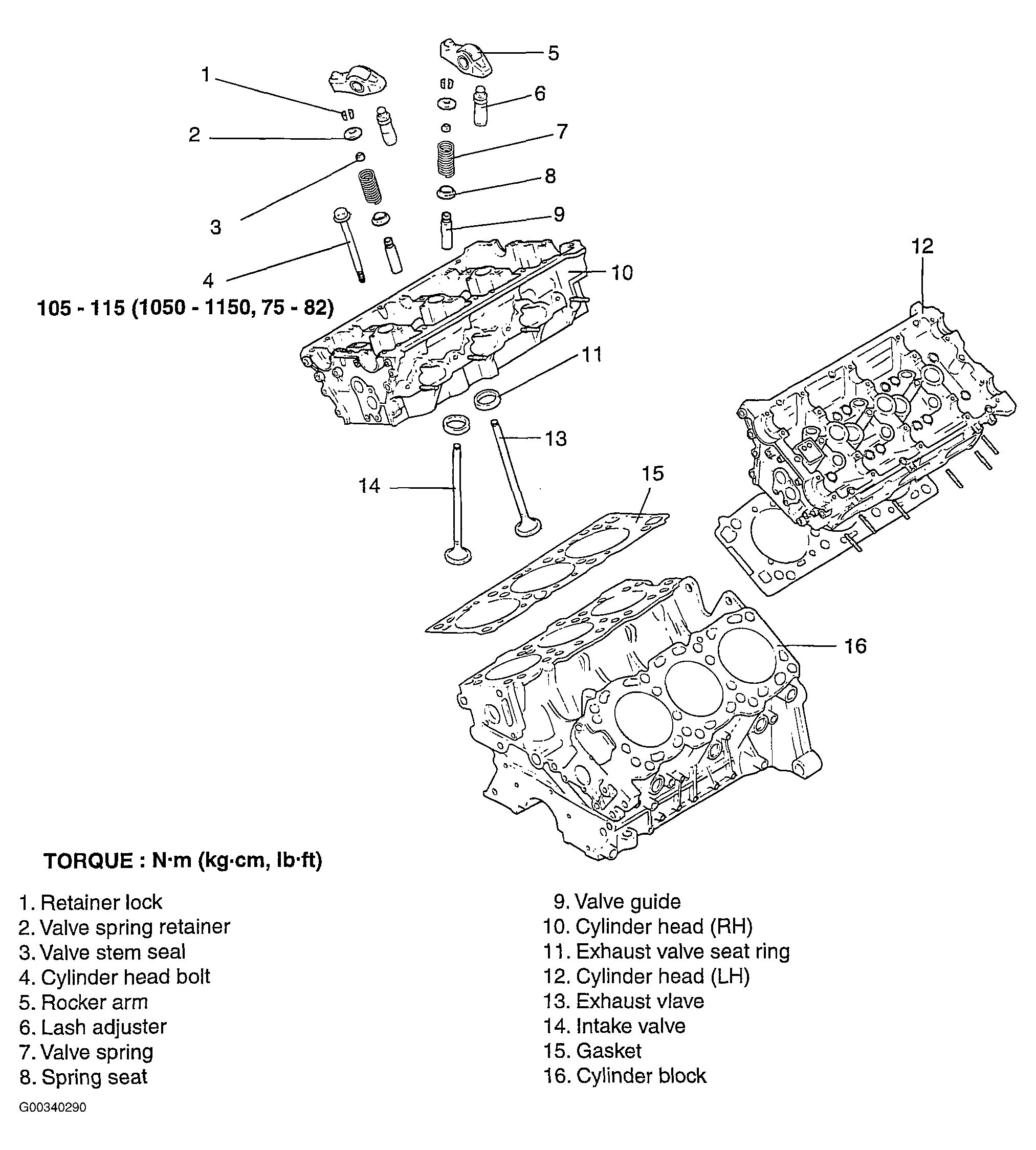

Fig 1: Cylinder Head Replacement Components With Torque Specifications
G00340290Courtesy of KIA MOTORS AMERICA, INC.
