Fifth Speed Synchronizer: Components

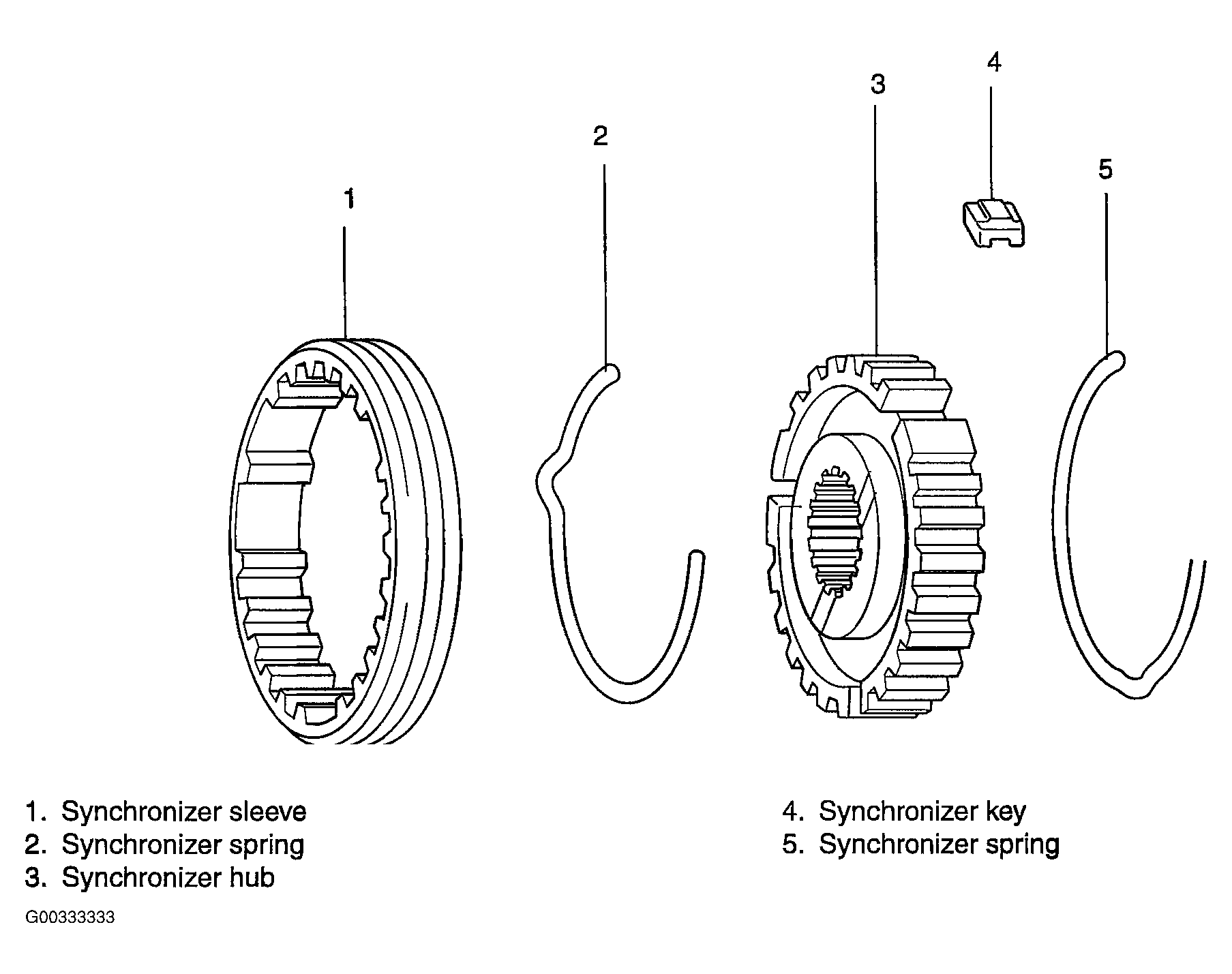

Fig 1: Exploded View Of Fifth Speed Synchronizer

G00333333

Courtesy of KIA MOTORS AMERICA, INC.
