Power Mirror Switch: Service and Repair

Power Outside Mirror Switch

REMOVAL
1. Remove the front door trim panel.

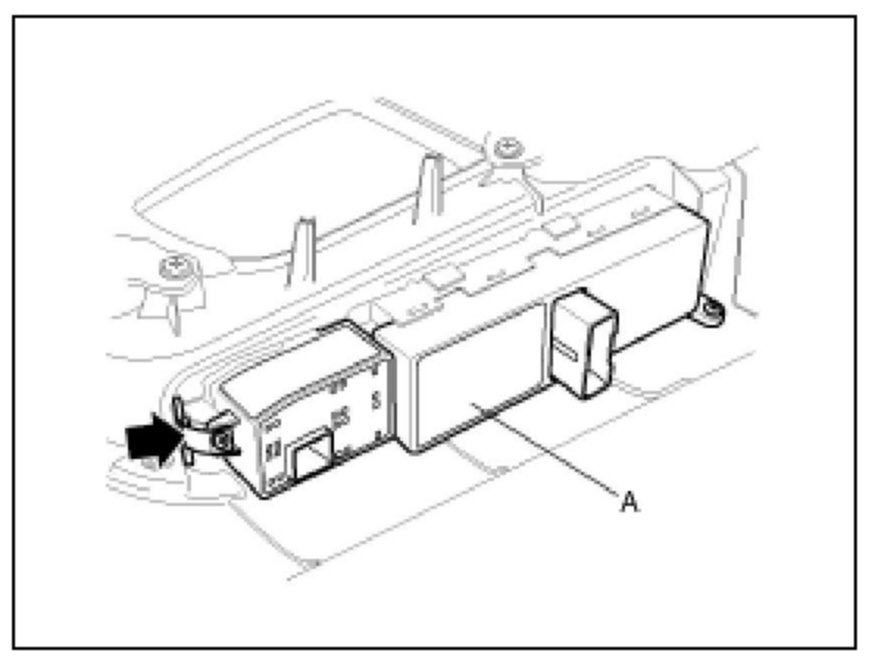

2. Remove the power window main switch (A) by pushing the mounting clip of the power window main switch.
