Brake Fluid Level Sensor/Switch: Testing and Inspection

BRAKE FLUID LEVEL WARNING SWITCH

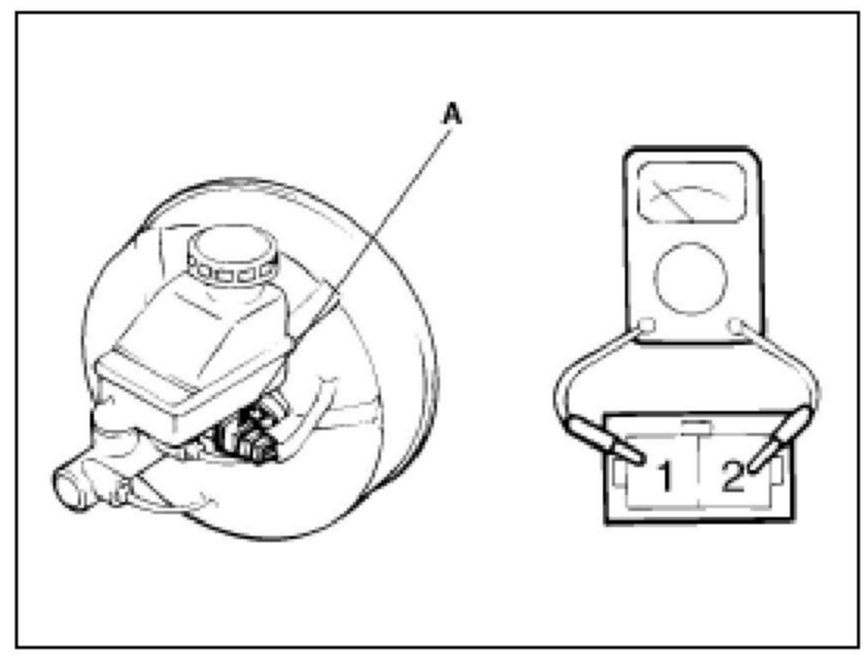

1. Remove the connector (A) from the switch located at the brake fluid reservoir.




2. Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.
