Evaporator Temperature Sensor / Switch: Testing and Inspection

THERMISTOR

INSPECTION
1. Start the engine.
2. Turn on the air conditioner.

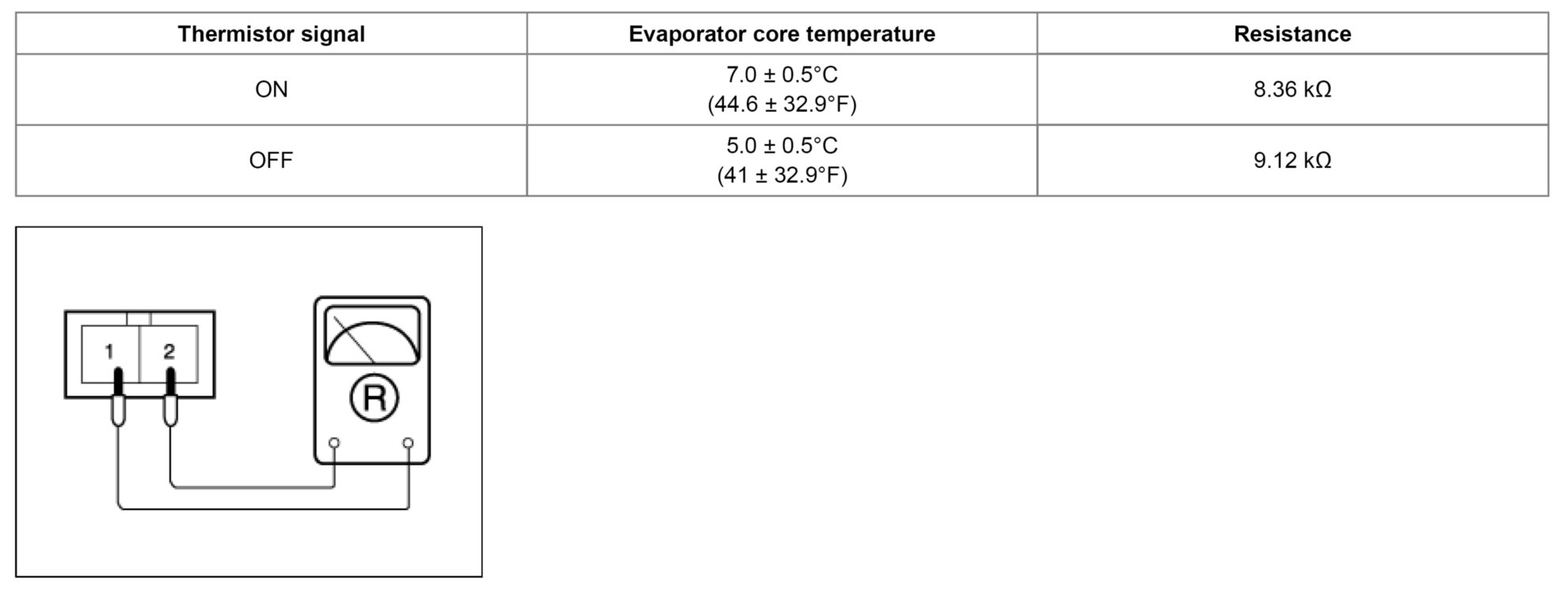

3. Using the multi-tester, check the resistance between terminals 1 and 2 in the thermistor.
